01 - Cover

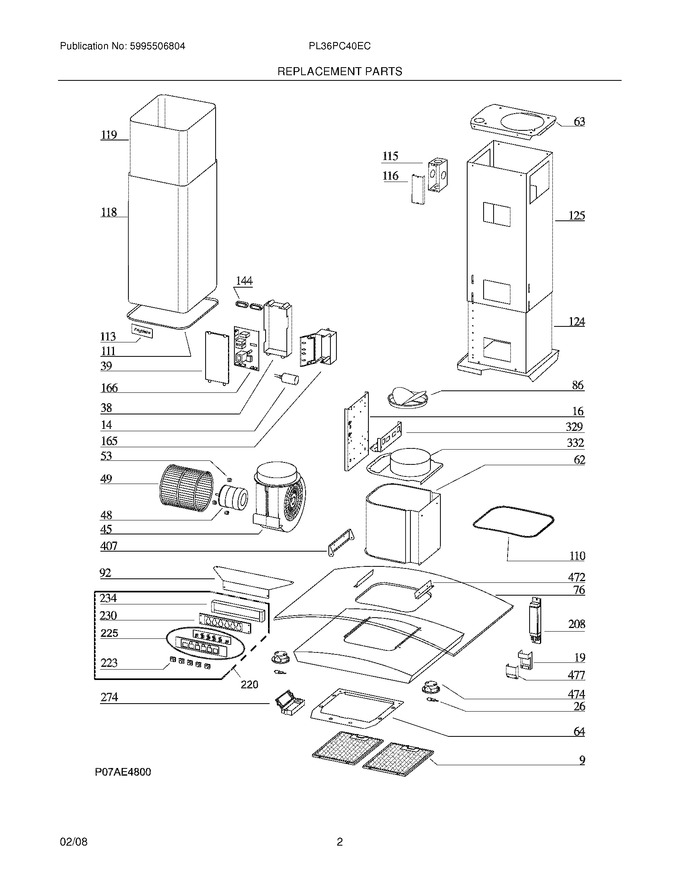

03 - Replacement Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5304455010 | Plate,mounting ,electric System |
|
- | |||||
| 19 | 5304454950 | Bracket,transformer ,protector |
|
$ 74.22 | |||||
| 26 | 5304454951 | Lamp,halogen ,20 W ,12 V |
|
$ 163.79 | |||||
| 38 | 5304454953 | Control Box,pc Board |
|
- | |||||
| 39 | 5304454954 | Cover,electrical Box |
|
- | |||||
| 45 | 5304454955 | Housing,blower Fan ,scroll |
|
- | |||||
| 53 | 5304454958 | Washer,motor Mount ,rubber |
|
$ 63.89 | |||||
| 62 | 5304455006 | Housing,blower Assembly |
|
- | |||||
| 63 | 5304455016 | Bracket,support Frame ,upper |
|
- | |||||
| 64 | 5304454970 | Panel,filter Support |
|
- | |||||
| 92 | 5304454975 | Bracket,switch Support |
|
- | |||||
| 113 | 5304454978 | Nameplate |
|
- | |||||
| 115 | 5304455023 | Wiring Box |
|
$ 113.63 | |||||
| 116 | 5304455018 | Cover,wiring Box |
|
$ 85.74 | |||||
| 118 | 5304455019 | Chimney,duct Cover ,lower Flue |
|
- | |||||
| 119 | 5304455020 | Chimney,duct Cover ,upper Flue |
|
$ 670.32 | |||||
| 124 | 5304455021 | Frame,support ,lower |
|
- | |||||
| 125 | 5304455022 | Frame,support ,upper |
|
- | |||||
| 144 | 5304454982 | Clamp,wiring |
|
- | |||||
| 165 | 5304454989 | Electrical Box,with Cover |
|
- | |||||
| 223 | 5304454993 | Push Button,control Switch |
|
- | |||||
| 230 | 5304454994 | Cover,switch Box |
|
- | |||||
| 234 | 5304454995 | Control Box,switch Board |
|
- | |||||
| 274 | 5304455009 | Fuse Box |
|
- | |||||
| 329 | 5304455008 | Bracket,support Plate |
|
- | |||||
| 332 | 5304455007 | Cover,blower ,duct Connector |
|
- | |||||
| 407 | 5304454997 | Bracket,blower Support |
|
$ 115.27 | |||||
| 472 | 5304455014 | Bracket,canopy |
|
- | |||||
| 477 | 5304455000 | Cover,terminal ,transformer |
|
$ 43.18 | |||||
| F110 | 5304465888 | Gasket,canopy Seal ,1100 Mm |
|
- | |||||
| F110 | 5304465887 | Gasket,canopy Seal ,2.02 Meters |
|
- | |||||
| F14 | 5304454900 | Capacitor,motor |
|
- | |||||
| F166 | 5304454991 | Control Board,printed Circuit |
|
$ 423.19 | |||||
| F208 | 5304455011 | Transformer |
|
- | |||||
| F220 | 5304455383 | Switch Assembly,controls |
|
- | |||||
| F225 | 5304454952 | Control,switch Board ,with Trim |
|
$ 194.07 | |||||
| F474 | 5304454999 | Housing,lamp Receptacle |
|
- | |||||
| F48 | 5304454956 | Motor,blower |
|
$ 384.79 | |||||
| F49 | 5304454957 | Blower Wheel,fan |
|
$ 173.17 | |||||
| F76 | 5304455013 | Canopy,hood ,glass |
|
- | |||||
| F86 | 5304454974 | Discharge Collar,damper |
|
$ 116.42 | |||||
| F9 | 5304454899 | Filter,grease ,aluminum ,washable |
|
$ 225.38 | |||||
| FNI | 5304455332 | Fuse,5 X 20 Mm ,4 Amp ,125 V |
|
$ 87.23 | |||||
| NI | 5304455333 | Fuse Holder |
|
- | |||||
| NI | 5304455015 | Installation Kit,mtg. Hardware |
|
- |
