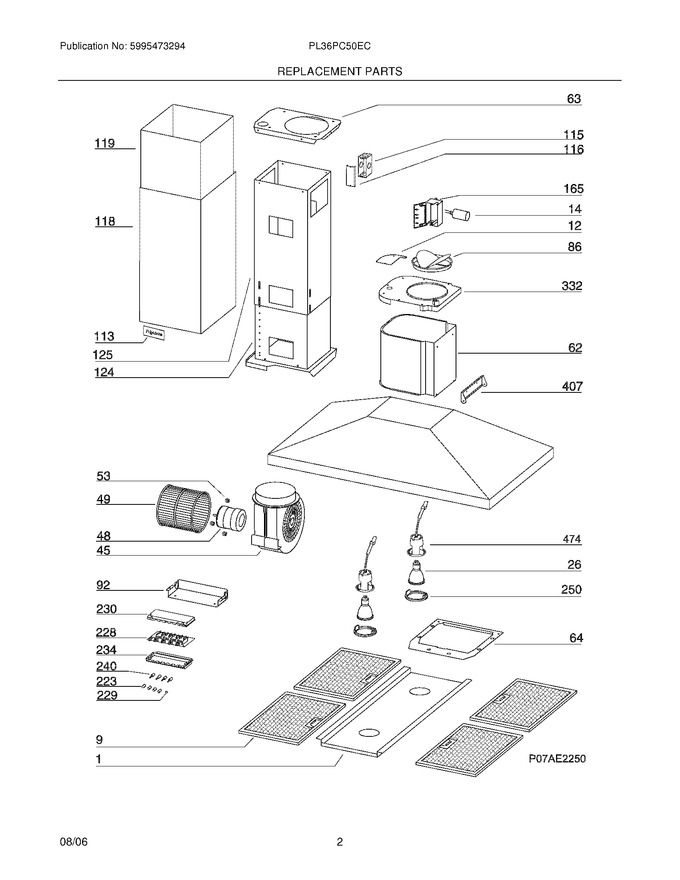

03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304455059		Panel,lamp Mount		Appelez-nous	-
12	5304455057		Plate,capacitor Box ,support		Appelez-nous	-
26	5304455048		Lamp,halogen ,50 W ,120 V				$ 175.12
45	5304454955		Housing,blower Fan ,scroll		Appelez-nous	-
53	5304454958		Washer,motor Mount ,rubber				$ 63.89
62	5304455006		Housing,blower Assembly		Appelez-nous	-
63	5304455016		Bracket,support Frame ,upper		Appelez-nous	-
64	5304454970		Panel,filter Support		Appelez-nous	-
92	5304455058		Bracket,support ,control Box		Appelez-nous	-
113	5304454978		Nameplate		Appelez-nous	-
115	5304455023		Wiring Box				$ 113.63
116	5304455018		Cover,wiring Box				$ 85.74
118	5304455063		Chimney,duct Cover ,lower Flue		Appelez-nous	-
119	5304455064		Chimney,duct Cover ,upper Flue		Appelez-nous	-
124	5304455021		Frame,support ,lower		Appelez-nous	-
125	5304455022		Frame,support ,upper		Appelez-nous	-
165	5304454989		Electrical Box		Appelez-nous	-
223	5304455045		Push Button,control Switch				$ 86.64
229	5304455046		Lamp,warning/pilot ,fan On		Appelez-nous	-
230	5304455041		Cover,switch Box		Appelez-nous	-
234	5304455040		Control Box,switch Board				$ 42.56
250	5304455049		Ring Nut,lamp Retainer				$ 174.52
332	5304454996		Cover,blower ,duct Connector		Appelez-nous	-
407	5304454997		Bracket,blower Support				$ 115.27
F14	5304454900		Capacitor,motor		Appelez-nous	-
F228	5304455037		Control,switch Board				$ 254.17
F240	5304455044		Actuator,switch				$ 58.61
F474	5304455047		Housing,lamp Receptacle				$ 173.17
F48	5304455030		Motor,blower				$ 436.01
F49	5304455031		Blower Wheel,fan				$ 174.56
F86	5304454974		Discharge Collar,damper				$ 116.42
F9	5304455061		Filter,grease ,aluminum		Appelez-nous	-
NI	5304455062		Installation Kit,mtg. Hardware		Appelez-nous	-
