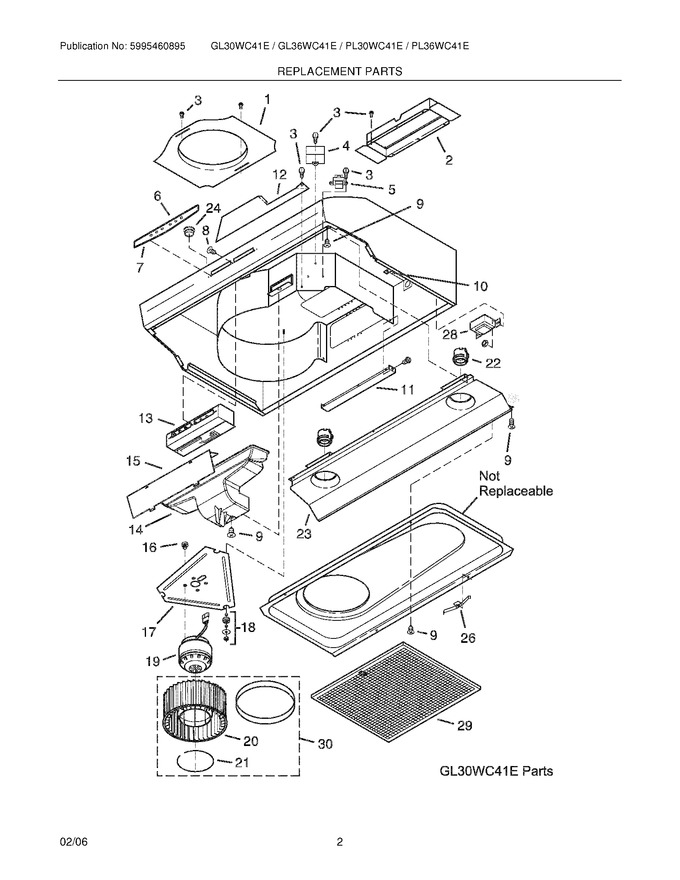

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304452401		Plate,round Duct ,7 Inch Dia.		Appelez-nous	-
2	5304454175		Connector,damper/duct				$ 153.98
3	5304454176		Screw,hex Head ,8-18 X 1/4 ,2-pk		Appelez-nous	-
6	5304454179		Label,control Panel ,black		Appelez-nous	-
7	5304454181		Control Panel,black		Appelez-nous	-
8	5304454183		Screw,flat Head ,no.6 X 1/2		Appelez-nous	-
9	5304454184		Screw,8-18 X 0.375		Appelez-nous	-
10	5304454185		Screw,ground/earth		Appelez-nous	-
11	5304454186		Cover,scroll ,outlet ,w/hardware		Appelez-nous	-
12	5304454187		Cover,scroll ,front ,w/hardware		Appelez-nous	-
14	5304454190		Chute Assembly,air ,w/15-baffle		Appelez-nous	-
15	5304454191		Baffle,air		Appelez-nous	-
16	5304454192		Screw,m4 X 6 Mm		Appelez-nous	-
17	5304454193		Plate,motor ,w/mounting Kit		Appelez-nous	-
18	5304454194		Mounting Kit,motor Plate		Appelez-nous	-
21	5304454197		Ring,retainer ,blower Wheel		Appelez-nous	-
23	5304454204		Panel,lamp ,36 Inch ,stainless		Appelez-nous	-
24	5304454205		Hole Plug		Appelez-nous	-
26	5304454206		Spring Kit,filter Retainer		Appelez-nous	-
F13	5304454188		Control Assembly,black ,w/6 & 7		Appelez-nous	-
F19	5304454195		Motor,fan ,w/16-screw				$ 371.92
F20	5304454196		Blower Wheel,fan ,w/21-ring		Appelez-nous	-
F22	5304454198		Receptacle,lamp Socket				$ 184.25
F28	5304454207		Transformer,auto ,w/hardware				$ 256.67
F29	5304454209		Filter,36 Inch ,aluminum Mesh				$ 287.19
F30	5304454210		Blower Wheel Assy,non-ducted				$ 212.18
F4	5304454177		Capacitor,motor ,with Hardware				$ 166.14
F5	5304454178		Transformer,isolation				$ 141.95
NI	5304454211		Wiring Harness		Appelez-nous	-
NI	5304454212		Fuse,control ,10 Amp		Appelez-nous	-
NI	5304454215		Nameplate,stainless Steel ,prof.		Appelez-nous	-
