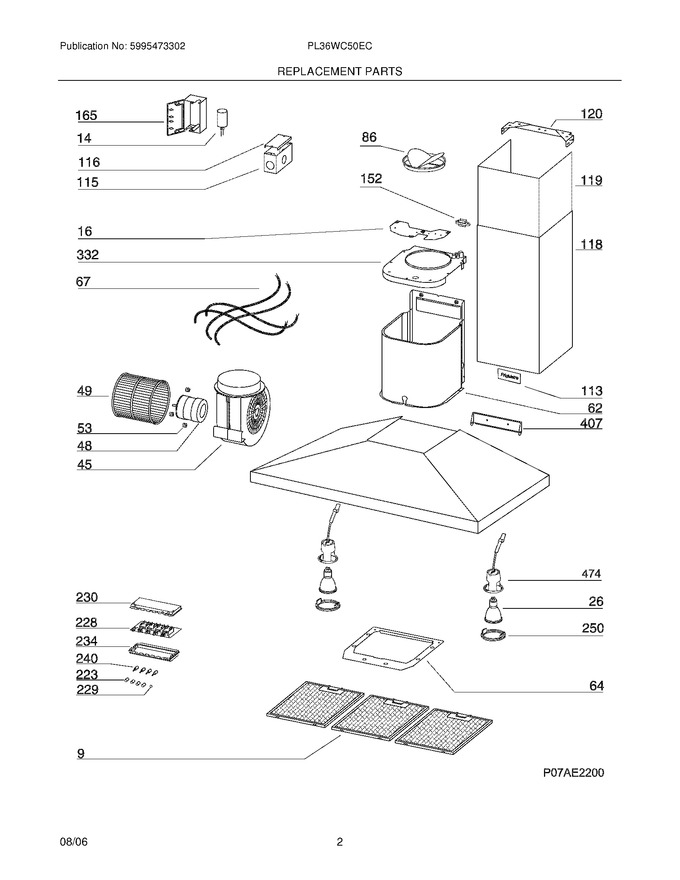

03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304455077		Plate,wiring Box ,support		Appelez-nous	-
26	5304455048		Lamp,halogen ,50 W ,120 V				$ 175.12
45	5304454955		Housing,blower Fan ,scroll		Appelez-nous	-
53	5304454958		Washer,motor Mount ,rubber				$ 63.89
62	5304454960		Housing,blower Assembly		Appelez-nous	-
64	5304454970		Panel,filter Support		Appelez-nous	-
113	5304454978		Nameplate		Appelez-nous	-
115	5304455023		Wiring Box				$ 113.63
116	5304455018		Cover,wiring Box				$ 85.74
118	5304455080		Chimney,duct Cover ,lower Flue				$ 285.14
119	5304455081		Chimney,duct Cover ,upper Flue				$ 262.65
120	5304454981		Bracket,chimney Mount ,top Flue				$ 288.63
152	5304455051		Clamp,power Cord		Appelez-nous	-
165	5304454989		Electrical Box		Appelez-nous	-
223	5304455045		Push Button,control Switch				$ 86.64
229	5304455046		Lamp,warning/pilot ,fan On		Appelez-nous	-
230	5304455041		Cover,switch Box		Appelez-nous	-
234	5304455040		Control Box,switch Board				$ 42.56
250	5304455049		Ring Nut,lamp Retainer				$ 174.52
332	5304454996		Cover,blower ,duct Connector		Appelez-nous	-
407	5304454997		Bracket,blower Support				$ 115.27
F14	5304454900		Capacitor,motor		Appelez-nous	-
F228	5304455037		Control,switch Board				$ 254.17
F240	5304455044		Actuator,switch				$ 58.61
F474	5304455047		Housing,lamp Receptacle				$ 173.17
F48	5304455030		Motor,blower				$ 436.01
F49	5304455031		Blower Wheel,fan				$ 174.56
F67	5304455078		Wiring Harness		Appelez-nous	-
F86	5304454974		Discharge Collar,damper				$ 116.42
F9	5304454899		Filter,grease ,aluminum ,washable				$ 225.38
NI	5304455082		Installation Kit,mtg. Hardware				$ 68.39
