Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2210522 Shelf, Ladder (2) Special Order $ 44.10

2 2202821 Shelf, Ladder Center Appelez-nous -
4 W10136387A Egg Bin   (Replaces: 2216624) Special Order $ 19.54

5 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18

6 2174014 Frame Assembly, Cantilever Appelez-nous -
8 2188212 Roller & Tread Assembly Appelez-nous -
9 2210583 Crisper Cover (includes Rollers) Appelez-nous -
10 2174478 Eyelet, Roller Special Order $ 5.70

11 2210571 Glass, Crisper Cover Appelez-nous -
13 WP1125528 Gasket, Crisper Cover (front) (2)   (Replaces: 2179213) Special Order $ 161.69

15 WP2172748 Crisper, Support   (Replaces: 2163832) Special Order $ 102.08

16 2174012 Shelf Assembly, Spillguard (3) (includes Rollers) Appelez-nous -
17 2184667 Shelf, Freezer Appelez-nous -
18 WPW10272364 Screw   (Replaces: 489211) In-Stock Immediately $ 11.36

19 2188816 Pan, Crisper (includes Rollers) Appelez-nous -
20 2188818 Pan, Meat (includes Rollers) Appelez-nous -
21 2179214 Gasket, Crisper Cover (side) (4) Appelez-nous -
23 2179216 Gasket, Crisper Cover (rear) (2) Appelez-nous -
24 WPW10130299 Cup, Shelf Mtg.   (Replaces: 2163762) In-Stock Immediately $ 14.70

26 2188718 Window, Crisper Appelez-nous -
27 2174259 Cap, Crisper (right Side) Appelez-nous -
27 2174258 Cap, Crisper (left Side) Appelez-nous -
28 2188720 Window, Meat Pan Appelez-nous -
29 WP489261 Screw   (Replaces: 489261) Special Order $ 8.33

30 489439 Screw Appelez-nous -
32 2174257 Slide, Humidity Appelez-nous -
35 2254352A Ice Bucket   (Replaces: 2254352) Special Order $ 58.64

36 2174253 Button, Humidity Control Appelez-nous -
39 2174396 Gasket, Front Appelez-nous -
45 2190504 Shelf Assembly, Spillguard Appelez-nous -
47 W10777924 Wine/ Egg Rack   (Replaces: 2179404K) Special Order $ 24.78


    View Diagram in Separate Window     Print Icon   Print Part List

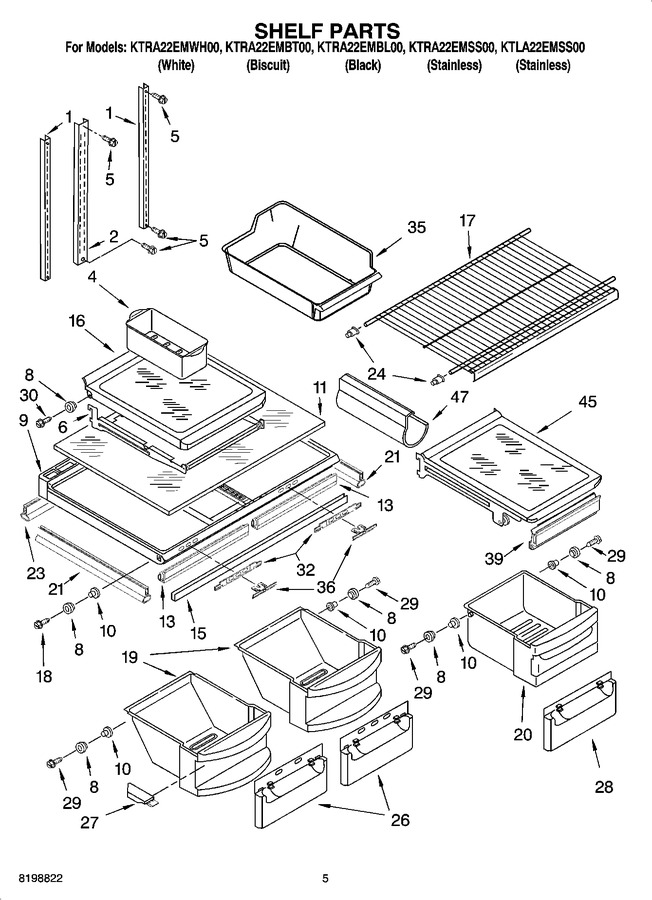

Diagram for KTLA22EMSS00
