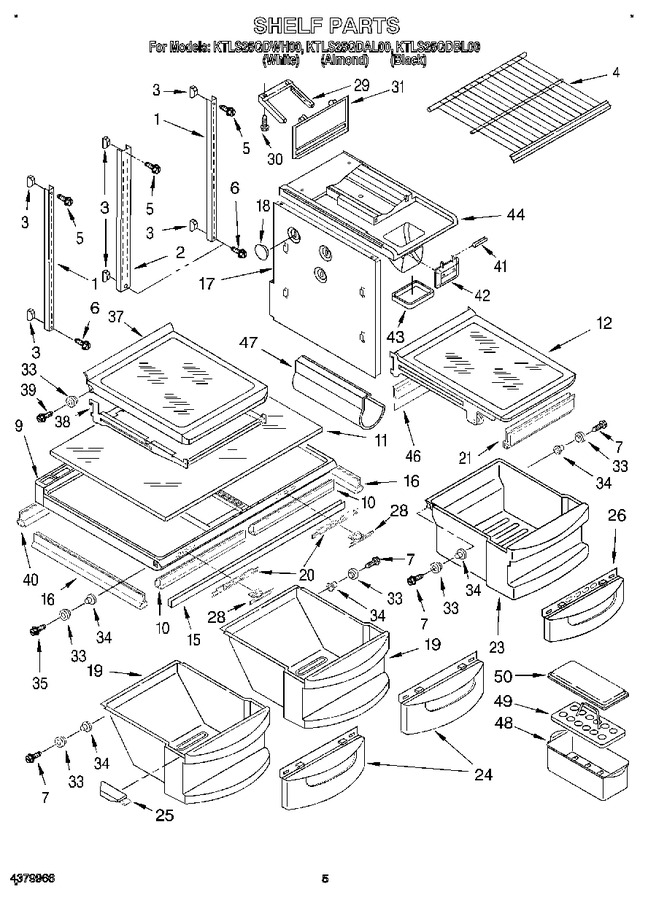

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support				$ 31.35
4	2160694		Shelf, Freezer (2)		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP489474		Screw   (Replaces: 489450)			Immediately	$ 8.55
7	WP489261		Screw   (Replaces: 489261)				$ 8.33
9	2174132		Pan Cover & Roller Assembly		Appelez-nous	-
10	WP1125528		Gasket, Pan Cover Front   (Replaces: 2179251)				$ 161.69
11	2174145		Glass, Crisper Cover		Appelez-nous	-
12	2174386		Pan Shelf & Roller Assembly		Appelez-nous	-
15	2179449		Crisper Support		Appelez-nous	-
16	2179252		Gasket, Pan Cover (side)		Appelez-nous	-
17	2160620		Support Wall I/m		Appelez-nous	-
18	2160621		Anchor-screw I/m		Appelez-nous	-
19	2174072		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174257		Slide, Humidity		Appelez-nous	-
21	2174400		Gasket-front		Appelez-nous	-
23	2174087		Meat Pan		Appelez-nous	-
24	2174073		Window, Crisper Pan		Appelez-nous	-
25	2174258		Cap, Crisper Pan (left Side)		Appelez-nous	-
25	2174259		Cap, Crisper Pan (right Side)		Appelez-nous	-
26	2174088		Window, Meat Pan		Appelez-nous	-
28	2174253		Button, Humidity Control		Appelez-nous	-
29	1115380		Slide, Ice Compartment		Appelez-nous	-
30	WP489478		Screw   (Replaces: 489242)				$ 8.18
31	2180033		Door-ice Compartment		Appelez-nous	-
33	2174388		Roller		Appelez-nous	-
34	2174478		Eyelet, Roller				$ 5.70
35	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
37	2174018		Shelf, Spillguard		Appelez-nous	-
38	2174020		Frame & Roller Assembly		Appelez-nous	-
39	489439		Screw		Appelez-nous	-
40	2179250		Gasket, Pan Cover-rear		Appelez-nous	-
41	489395		Roll Pin		Appelez-nous	-
42	2160613		Door-platform		Appelez-nous	-
43	2160615		Gasket-platform		Appelez-nous	-
44	2160612		Platform-ice Container		Appelez-nous	-
46	W10777924		Gasket-rear   (Replaces: 2179404)				$ 24.78
47	W10777924		Wine & Egg Rack   (Replaces: 2179375)				$ 24.78
48	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
49	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
50	2169935		Cover, Egg Bin		Appelez-nous	-
