01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

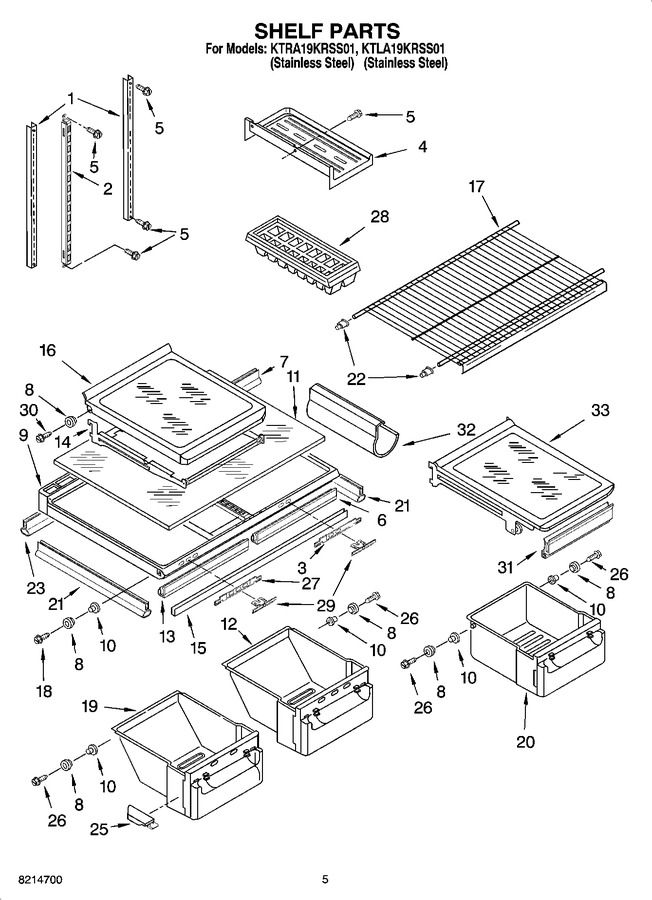

| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | 2174256 | Slide, Humidity |
|
- | |||||
| 4 | 2212770 | Shelf, Ice Tray |
|
$ 65.17 | |||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 6 | WP1125528 | Gasket, Crisper Cover (front) (Replaces: 2179212) |
|
$ 161.69 | |||||
| 7 | 2179215 | Gasket, Crisper Cover (rear) |
|
- | |||||
| 8 | 2188212 | Roller & Tread Assembly |
|
- | |||||
| 9 | 2198759 | Crisper Cover (inlcudes Illus. 3,6,7,8,10, 13,18,21,23,27,29) |
|
- | |||||
| 10 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 11 | 2221694 | Glass, Crisper Cover |
|
- | |||||
| 12 | 2188811 | Pan, Crisper (11 Inch) (includes Illus. 8,10,25,26) |
|
- | |||||
| 13 | WP1125528 | Gasket, Crisper Cover (front) (Replaces: 2179213) |
|
$ 161.69 | |||||
| 14 | 2174011 | Frame Assembly, Spillguard (includes Illus. 8 & 10) |
|
- | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 102.08 | |||||
| 16 | 2174009 | Shelf Assembly, Spillguard (includes Illus. 8 & 30) |
|
- | |||||
| 17 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 123.40 | |||||
| 18 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 19 | 2188816 | Pan, Crisper (13 Inch) (includes Illus. 8,10,25,26) |
|
- | |||||
| 20 | 2188817 | Pan, Meat (includes Illus. 8,10 & 26) |
|
- | |||||
| 21 | 2179214 | Gasket, Crisper Cover (side) |
|
- | |||||
| 22 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 23 | 2179216 | Gasket, Crisper Cover (rear) |
|
- | |||||
| 25 | 2174259 | Cap, Crisper Pan (left Side) |
|
- | |||||
| 25 | 2174258 | Cap, Crisper Pan (right Side) |
|
- | |||||
| 26 | WP489261 | Screw (Replaces: 489261) |
|
$ 8.33 | |||||
| 27 | 2174257 | Slide, Humidity |
|
- | |||||
| 28 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 29 | 2174253 | Button, Humidity Control |
|
- | |||||
| 30 | 489439 | Screw |
|
- | |||||
| 31 | 2174394 | Gasket, Front |
|
- | |||||
| 32 | W10777924 | Wine Rack Assembly (Replaces: 2179404K) |
|
$ 24.78 | |||||
| 33 | 2190503 | Shelf Assembly, Spillguard (includes Illus. 31) |
|
- |
