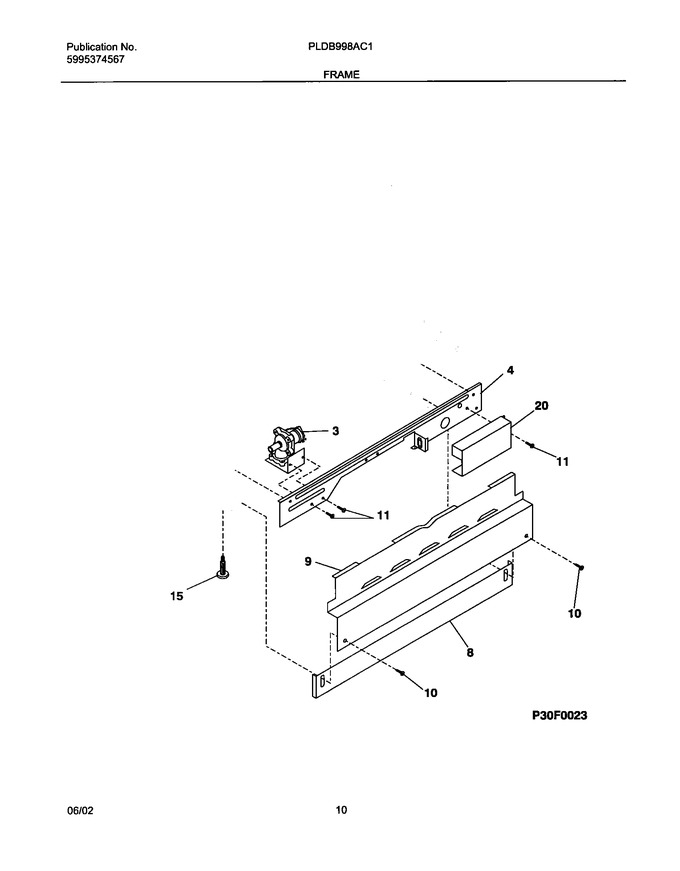

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	154637401		Valve,water   (Replaces: 154373301)			Immediately	$ 23.73
4	5304508587		Brace,front Frame   (Replaces: 154208701)				$ 32.13
8	154745503		Toeplate-adjustable,black   (Replaces: 154322903)			Immediately	$ 17.50
10	154419403		Screw,no.8a X .375`` ,black   (Replaces: 5300808658)				$ 14.56
11	808326801		Screw,no.8-18 X .375   (Replaces: 154409401)				$ 3.15
15	154419301		Screw,leveling				$ 17.17
20	154209601		Cover-junction Box				$ 39.80
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 10.24
NI	154412301		Baffle,sound		Appelez-nous	-
NI	154249301		Insulation, Kickplate		Appelez-nous	-
NI	154290001		Insulation,sound Baffle ,side		Appelez-nous	-
NI	154290101		Guard,sound Baffle ,wire		Appelez-nous	-
