Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10805973 Thermostat   (Replaces: 73001502) 10 Special Order $ 742.18

2 73001048 Thermostat, Oven Broil 10 Appelez-nous -
3 73001429 Bracket, Manifold Panel 10 Appelez-nous -
4 73001308 Light, Indicator 10 Appelez-nous -
5 73001047 Thermostat 10 Appelez-nous -
6 73001304 Bezel, Knob (burner) 10 Special Order $ 42.42

7 73001303 Bezel, Knob (t-stat) 10 Special Order $ 59.19

8 73001424 Knob, Thermostat 10 Special Order $ 50.63

9 73001305 Bezel, Knob (simmer) 10 Special Order $ 38.69

10 73001425 Knob, Thermostat 10 Special Order $ 68.90

11 WPW10175695 Knob, Burner   (Replaces: 73001301) 10 In-Stock Immediately $ 26.03

12 73001074 Switch, Light 10 Appelez-nous -
13 73001258 Screw (8-32 X 1``)-10 Pack 10 Appelez-nous -
14 73001431 Panel, Manifold 10 Appelez-nous -
15 73001426 Switch, Convection Fan 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

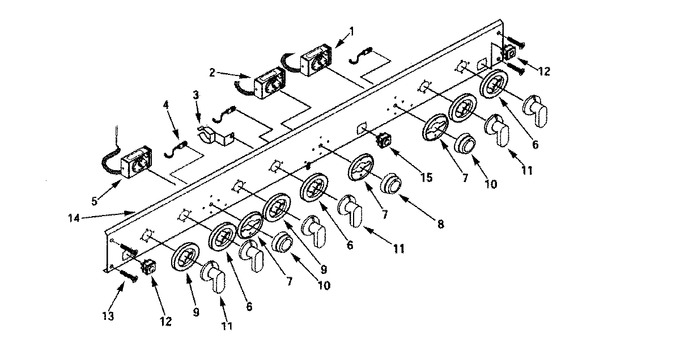

Diagram for PRG4810NP
