Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2210522 Shelf, Ladder (2) Special Order $ 44.10

2 2300520 Shelf, Ladder Center Special Order $ 75.36

3 2254458 Deflector, Air (crisper Pan) Special Order $ 68.24

4 W10136387A Egg Bin   (Replaces: 2216624) Special Order $ 18.61

5 WP489478 Screw   (Replaces: 489478) Special Order $ 7.75

6 2174014 Frame Assembly, Cantilever Appelez-nous -
8 2188212 Roller & Tread Assembly Appelez-nous -
9 2210583 Crisper Cover (includes Items 8,10,13,18,21,23, 32 & 34) Appelez-nous -
10 2174478 Eyelet, Roller Special Order $ 5.70

11 2210571 Glass, Crisper Cover Appelez-nous -
13 WP1125528 Gasket, Crisper Cover (front) (2)   (Replaces: 2179213) Special Order $ 153.99

14 WP2172748 Support, Crisper Cover   (Replaces: 2163832) Special Order $ 97.22

16 2174012 Shelf Assembly, Spillguard (3) (includes 8 & 30) Appelez-nous -
17 2184667 Shelf, Freezer Appelez-nous -
18 WPW10272364 Screw   (Replaces: 489211) In-Stock Immediately $ 10.82

19 2188816 Pan, Crisper (includes Items 8,10,27 & 29) Appelez-nous -
20 2188818 Pan, Meat (includes Items 8,10 & 29) Appelez-nous -
21 2179214 Gasket, Crisper Cover (side) (4) Appelez-nous -
23 2179216 Gasket, Crisper Cover (rear) (2) Appelez-nous -
24 WPW10130299 Cup, Shelf Mtg.   (Replaces: 2163762) In-Stock Immediately $ 14.00

27 2174258 Cap, Crisper (left Side) Appelez-nous -
27 2174259 Cap, Crisper (right Side) Appelez-nous -
29 WP489261 Screw   (Replaces: 489261) Special Order $ 7.61

30 489439 Screw Appelez-nous -
32 2174257 Slide, Humidity Appelez-nous -
33 2254352A Ice Bucket   (Replaces: 2254352) Special Order $ 55.85

34 2174253 Button, Humidity Control Appelez-nous -
35 2174396 Gasket, Front Appelez-nous -
36 2190504 Shelf Assembly, Spillguard (includes Illus. 35) Appelez-nous -
37 W10777924 Wine/ Egg Rack   (Replaces: 2179404K) Special Order $ 23.60

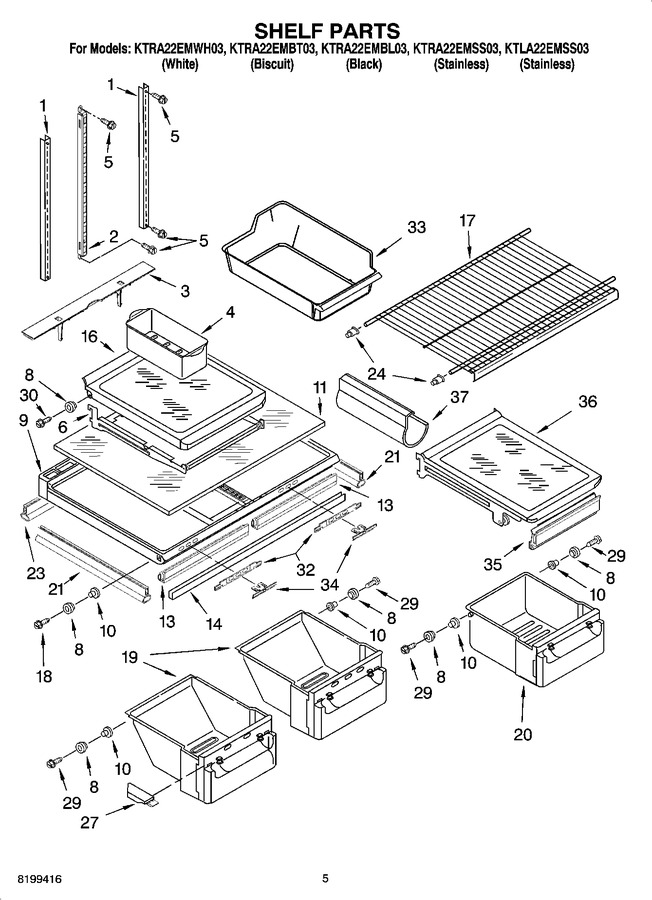

    View Diagram in Separate Window     Print Icon   Print Part List
