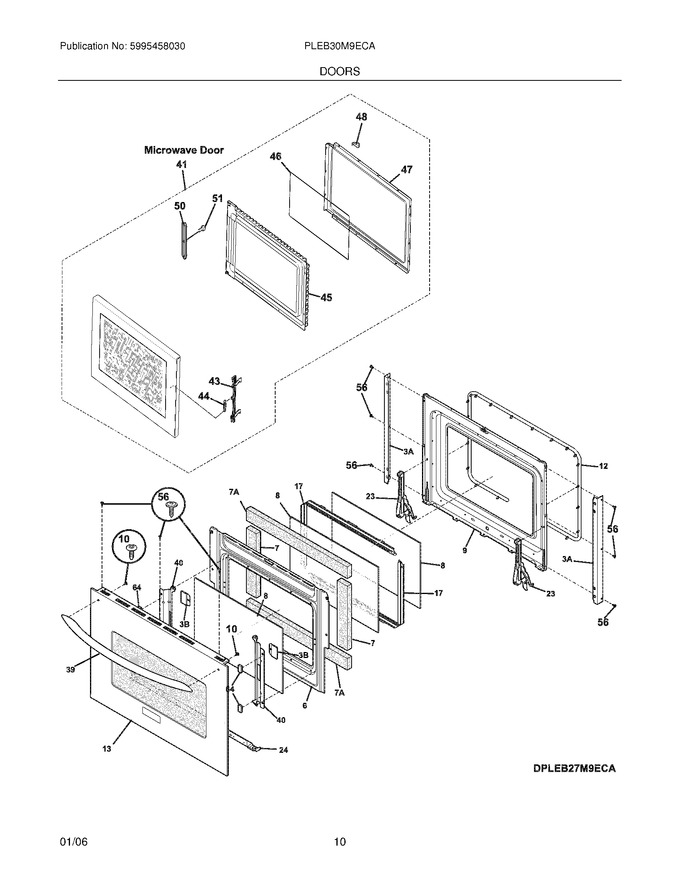

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260500		Baffle,door		Appelez-nous	-
7	318372017		Insulation,oven Door   (Replaces: 318285057)				$ 18.11
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 129.94
9	318259605		Liner,door		Appelez-nous	-
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 9.27
12	318053120		Seal,door ,upper Oven			Immediately	$ 177.35
13	318272156		Door Assy,w/nameplate ,stainless Steel ,outer,w/tape & Foil		Appelez-nous	-
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 27.80
23	318024714		Hinge,door ,(2)		Appelez-nous	-
24	318260301		Trim,door ,black ,lower				$ 44.26
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219802)				$ 161.46
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 56.46
41	5304452258		Door Assembly,complete ,stainless		Appelez-nous	-
43	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 54.34
44	5304440316		Spring,door Latch			Immediately	$ 67.78
45	5304440857		Panel,inner Door ,black				$ 213.66
46	5304440860		Seal,door ,film				$ 63.09
47	5304440861		Frame,choke Cover ,inner Door				$ 81.13
48	5304442145		Door Stop		Appelez-nous	-
50	5304440862		Door Stop		Appelez-nous	-
51	5304452259		Screw		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 16.01
64	318165800		Spacer,(2)				$ 19.69
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)   (Replaces: 318262101)				$ 27.77
7A	318372016		Insulation,oven Door   (Replaces: 318285062)				$ 19.69
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323277		Screw (8-18x13/32)				$ 8.66
