Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2221743 Refrigerator Door (includes Illus. 6,7 & 8) (stainless (for Model Ktla22emss03)) Appelez-nous -
1 2221720 Refrigerator Door (includes Illus. 6,7 & 8) (white) Appelez-nous -
1 2221722 Refrigerator Door (includes Illus. 6,7 & 8) (biscuit) Appelez-nous -
1 2221721 Refrigerator Door (includes Illus. 6,7 & 8) (black) Appelez-nous -
1 2221742 Refrigerator Door (includes Illus. 6,7 & 8) (stainless (for Model Ktra22emss03)) Appelez-nous -
2 WP488163 Screw   (Replaces: 488208) Special Order $ 7.92

3 2218119 Door Compartment Assembly Appelez-nous -
4 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 13.37

5 WP488921 Screw   (Replaces: 488921) In-Stock Immediately $ 8.24

6 WP2183003 Thimble   (Replaces: 2183003) Special Order $ 8.14

7 2183000 Tap Plate Special Order $ 36.19

8 2177311 Door Gasket, Magnetic (black)   (Replaces: 2202882) Special Order $ 330.95

8 2159061 Door Gasket, Magnetic (mist Beige)   (Replaces: 2202875) In-Stock Immediately $ 183.67

9 2221770 Handle, Door (stainless) Appelez-nous -
9 2221772 Handle, Door (black) Appelez-nous -
9 2221773 Handle, Door (biscuit) Appelez-nous -
9 2221771 Handle, Door (white) Appelez-nous -
10 2171064 Bin, Door Shelf Appelez-nous -
11 WPW10421486 Shelf, Trim   (Replaces: 2195948) Special Order $ 114.74

12 2218122 Door, Compartment Appelez-nous -
13 WPW10170540 Stud, Handle   (Replaces: 2219698) In-Stock Immediately $ 8.51

15 2165792 Butter, Dish Appelez-nous -
18 2159124 Gasket, Door Compartment Appelez-nous -
19 2171062 Bin, Door Shelf (1) Special Order $ 40.08

20 WP2156006 Plug-trim   (Replaces: 2156006) In-Stock Immediately $ 12.79

21 2221723 Left Hand Door Swing (white) Appelez-nous -
21 2221724 Left Hand Door Swing (black) Appelez-nous -
21 2221725 Left Hand Door Swing (biscuit) Appelez-nous -
21 2193409 Beverage Holder Special Order $ 48.13


    View Diagram in Separate Window     Print Icon   Print Part List

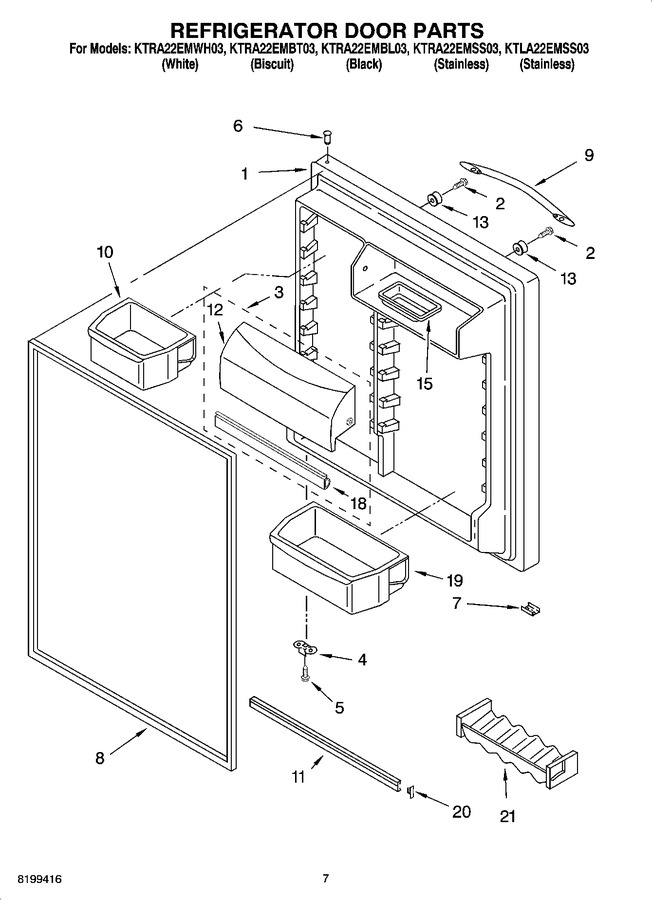

Diagram for KTRA22EMWH03
