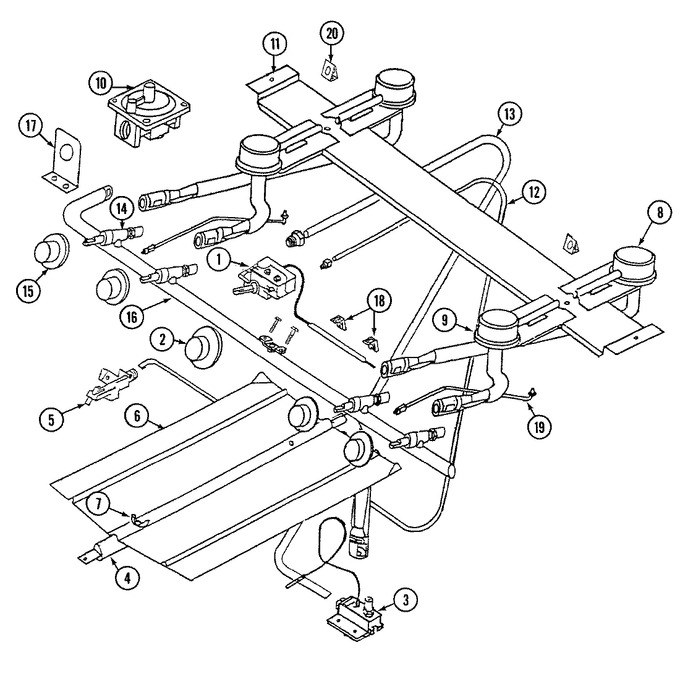

01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7507P048-60 | Flange | 10 |
|
- | ||||
| 1 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 1 | 7101P241-60 | Screw | 10 |
|
- | ||||
| 1 | 72001134 | Thermostat | 10 |
|
- | ||||
| 1 | 1555222 | Nut, Loxit (3/16``) | 10 |
|
- | ||||
| 2 | 72001103 | Knob, Thermostat | 10 |
|
- | ||||
| 3 | 72001104 | Valve, Oven | 10 |
|
- | ||||
| 3 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 4 | 72001105 | Burner, Oven | 10 |
|
- | ||||
| 5 | 72001135 | Pilot, Oven Burner | 10 |
|
- | ||||
| 6 | 72001022 | Baffle, Oven Burner | 10 |
|
- | ||||
| 7 | 7103P030-60 | Nut, Wing | 10 |
|
$ 7.43 | ||||
| 8 | 72001108 | Burner, Top (rear) | 10 |
|
- | ||||
| 9 | 72001109 | Burner, Top (front) | 10 |
|
- | ||||
| 10 | 72001110 | Regulator, Pressure | 10 |
|
- | ||||
| 11 | 72001137 | Hanger, Top Burner | 10 |
|
- | ||||
| 12 | 0931201 | 3/16 X 80 Tubing | 10 |
|
- | ||||
| 13 | 12001100 | Kit, Tubing W/loxit (3/8``) | 10 |
|
- | ||||
| 14 | 72001138 | Valve, Burner | 10 |
|
- | ||||
| 15 | 72001139 | Knob, Burner | 10 |
|
- | ||||
| 16 | 72001140 | Pipe, Manifold | 10 |
|
- | ||||
| 17 | 72001096 | Bracket, Manifold Pipe | 10 |
|
- | ||||
| 18 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 12.92 | |||
| 19 | 72001141 | Pilot, Top Burner | 10 |
|
- | ||||
| 20 | 72001142 | Shield, Top Burner Pilot | 10 |
|
- |
