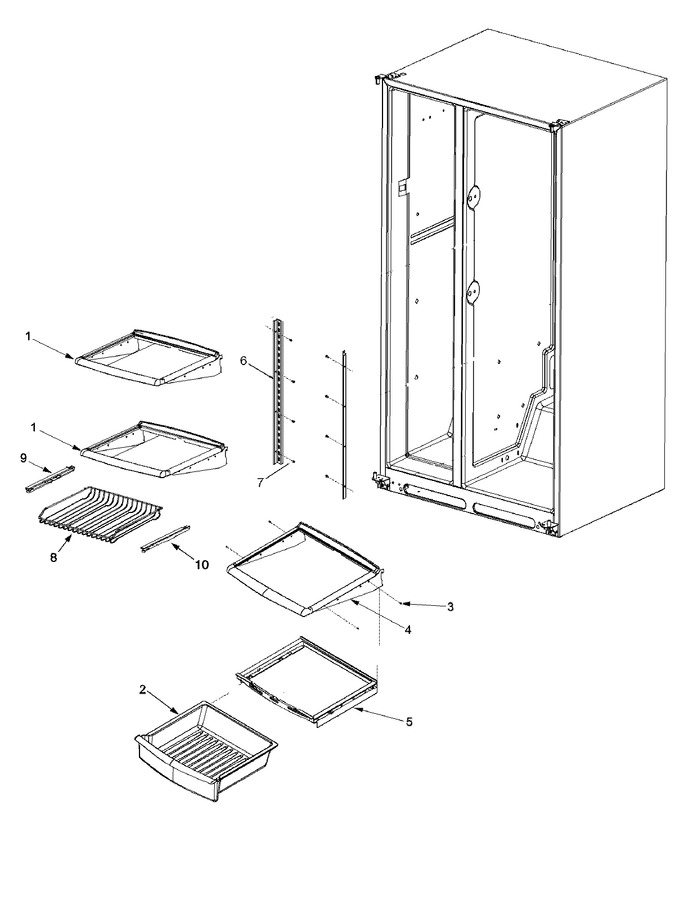

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003183		Shelf, Stationary		Appelez-nous	-
2	67001505		Pan, Sm Crisper				$ 59.94
3	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
4	67003183		Shelf, Stationary		Appelez-nous	-
5	67002900		Frame, Sm Crisper		Appelez-nous	-
6	67001178		Ladder, Side		Appelez-nous	-
7	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
8	12565901		Rack, Can		Appelez-nous	-
9	12579602		Glide, Can Rack (lt)		Appelez-nous	-
9	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
10	12579601		Glide, Can Rack (rt)		Appelez-nous	-
10	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
11	67003490		Sm Crisper Frame Assy		Appelez-nous	-
