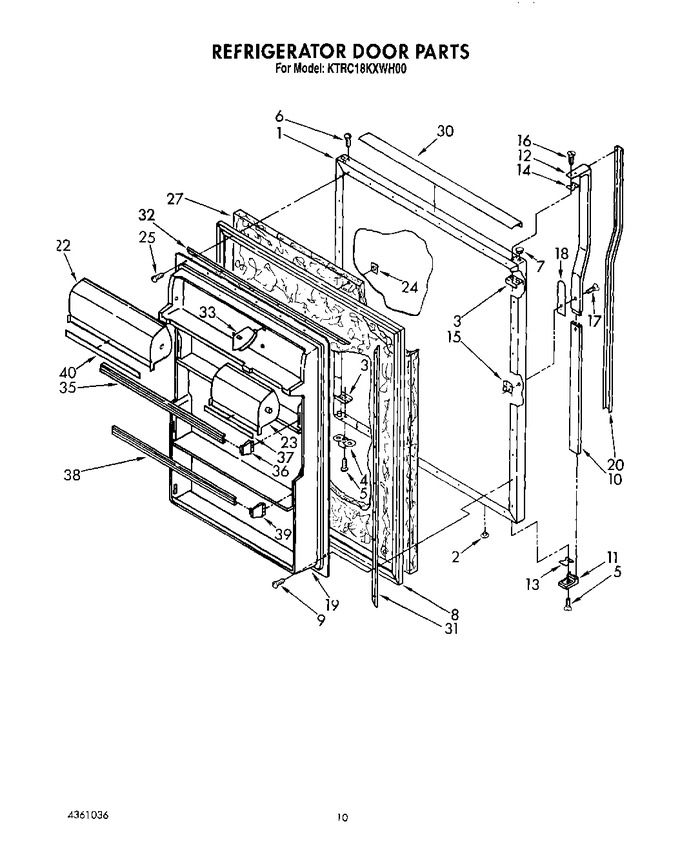

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116578		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
1	1116575		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (2)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1125889		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	1125879		Retainer, Insert		Appelez-nous	-
11	1107236		Handle End Cap		Appelez-nous	-
12	1107230		Handle Assembly		Appelez-nous	-
13	1107229		Shim, End Cap		Appelez-nous	-
14	1107192		Spacer, Handle		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	1107650		Spacer, Handle		Appelez-nous	-
19	1118123		Interior Door Panel		Appelez-nous	-
20	1125877		Insert, Handle (white)		Appelez-nous	-
20	1125878		Insert, Handle (almond)		Appelez-nous	-
21	1125857		Trim, Door Shelf		Appelez-nous	-
22	1126234		Compartment Door, Utility		Appelez-nous	-
23	1126233		Compartment Door, Butter		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
30	1126013		Trim, Door		Appelez-nous	-
31	1115136		Retainer, Gasket Side (2)		Appelez-nous	-
32	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
33	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
35	1125866		Trim, Shelf		Appelez-nous	-
36	4386917		End Cap Trim   (Replaces: 1105685)			Immediately	$ 18.90
37	2148588		Trim, Compartment		Appelez-nous	-
38	1117944		Trim, Shelf		Appelez-nous	-
39	4318297		Endcap, Trim   (Replaces: 1106861)				$ 24.43
40	4318413		Trimless Glass (black Grille Kit)		Appelez-nous	-
40	4318427		Trimless Glass (black (l.h.))		Appelez-nous	-
40	4318310		Trimless Glass (white (r.h.))		Appelez-nous	-
40	4318428		Trimless Glass (white (l.h.))		Appelez-nous	-
40	4318311		Trimless Glass (almond (r.h.))		Appelez-nous	-
40	4318429		Trimless Glass (almond (l.h.) Handle Inserts)		Appelez-nous	-
40	4318301		Trimless Glass (black)		Appelez-nous	-
40	4318302		Trimless Glass (woodgrain)		Appelez-nous	-
40	1121186		Trim, Compartment Door		Appelez-nous	-
40	4318300		Trimless Glass (black (r.h.))		Appelez-nous	-
