SELECT A DIAGRAM

01 - Cover


03 - Door

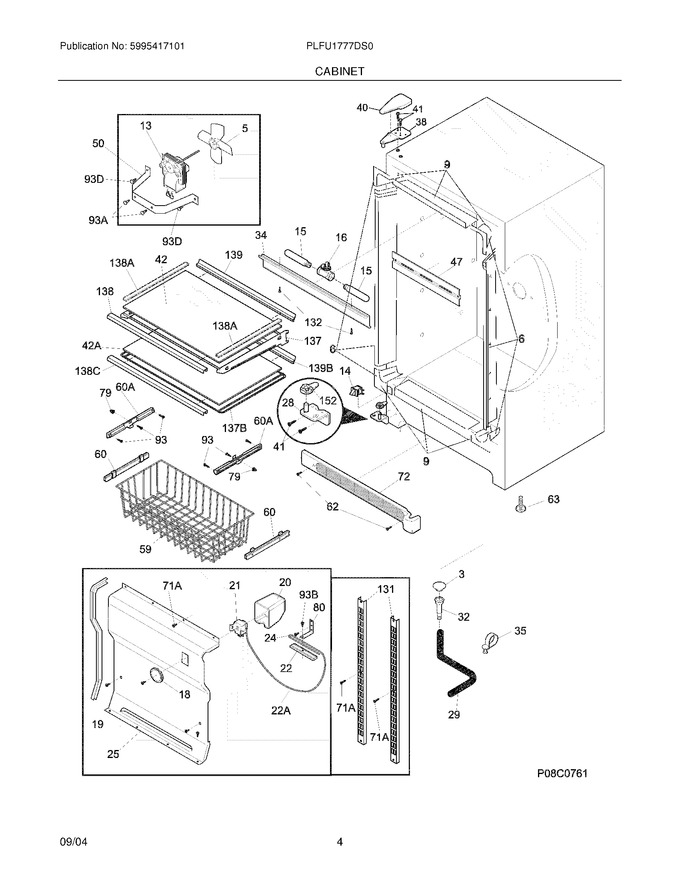

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
6	216604200		Breaker Kit W/corners				$ 227.12
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	216922800		Switch,light/lamp ,ramp				$ 12.22
15	5304517886		Light Bulb/lamp,long ,frosted ,40 W ,120v,(2)   (Replaces: 216988000)			Immediately	$ 81.18
16	241622802		Socket-light   (Replaces: 241507803)				$ 73.25
18	216707200		Knob,temp Control				$ 49.00
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
20	216230300		Cover, Temp Control				$ 49.88
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 92.38
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216949703		Cover-evaporator		Appelez-nous	-
28	216978201		Hinge,bracket, Lower ,lh				$ 117.02
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
34	216979500		Shield-light		Appelez-nous	-
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	216809001		Cover-upper Hinge,black				$ 13.70
41	216954400		Screw,12-24 X.700 Hwh ,hinge Mtg.		Appelez-nous	-
42	297265900		Glass-shelf,full Shelf   (Replaces: 216983101)				$ 173.50
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 28.12
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 25.28
59	216939300		Basket,(2)				$ 118.07
60	216936701		Slide-basket,lh ,(2)		Appelez-nous	-
60	216936700		Slide-basket,rh ,(2)		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 14.96
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	216946601		Grille/kickplate,32`` ,black		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 17.67
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 12.05
131	216971200		Channel-shelf Mtg,back ,(2)		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
137	297050600		Frame-shelf,cantilever   (Replaces: 216983300)			Immediately	$ 199.21
138	216983400		Trim-shelf,front		Appelez-nous	-
139	216983500		Trim-shelf,rear		Appelez-nous	-
152	216974600		Bearing,hinge Closer				$ 16.36
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 67.73
42A	297007700		Glass-shelf,sliding				$ 138.96
60A	297013500		Slide,shelf ,(2)   (Replaces: 5303212693)				$ 43.31
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 14.46
93B	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93D	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 61.47
F137	297007600		Frame-shelf,sliding				$ 118.93
F138	216983600		Trim-shelf,side		Appelez-nous	-
F138	297007800		Trim-shelf,front				$ 36.67
F139	297007900		Trim-shelf,rear				$ 37.05
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 54.48
NI	216893600		Plug,ice Maker ,internal		Appelez-nous	-
NI	216893800		Cover,external ,ice Maker ,(2)		Appelez-nous	-
NI	240494001		Plug,button ,cab Liner Holes ,(2)   (Replaces: 240479601)			Immediately	$ 20.22
NI	297002600		Gasket,light Socket		Appelez-nous	-
NI	216795408		Energy Guide		Appelez-nous	-
NI	09948773		Insulation, Drain Tube				$ 12.60

    View Diagram in Separate Window       Print Part List
