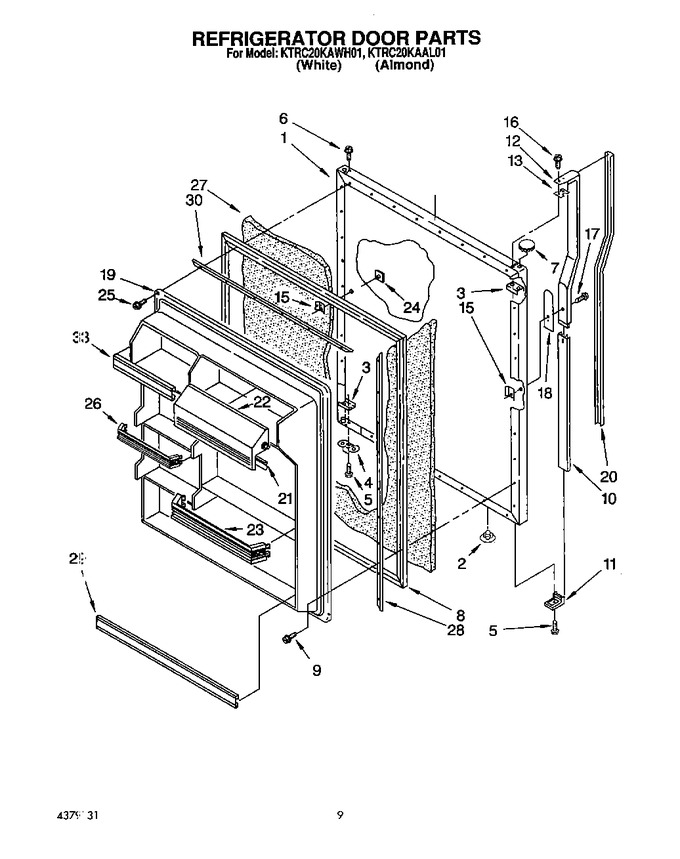

06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157700		Panel, Refrigerator Door (white)		Appelez-nous	-
1	2157703		Panel, Refrigerator Door (almond (also Order Item 27))		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	1123568		Plate, Tap (4)		Appelez-nous	-
4	2157748		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic   (Replaces: 2148565)				$ 284.09
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	1107209		Retainer, Insert		Appelez-nous	-
11	1107236		End Cap, Handle		Appelez-nous	-
12	2161508		Handle				$ 111.30
13	2151813		Shim, End Cap		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	1107650		Spacer, Handle		Appelez-nous	-
19	1126202		Interior Door Panel		Appelez-nous	-
20	2161513		Insert, Handle (white)		Appelez-nous	-
20	2161514		Insert, Handle (almond)		Appelez-nous	-
21	1125695		Gasket, Utility Door		Appelez-nous	-
22	1125733		Utility Door		Appelez-nous	-
23	1126206		Shelf Bin (wide)				$ 36.28
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	WP488729		Screw, Corner (8)   (Replaces: 489287)			Immediately	$ 8.28
26	1125676		Shelf Bin (2)		Appelez-nous	-
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	1122551		Retainer, Gasket		Appelez-nous	-
29	1125562		Trim, Door Shelf		Appelez-nous	-
30	1122552		Retainer, Gasket		Appelez-nous	-
33	1126497		Trim, Door Shelf		Appelez-nous	-
