SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator

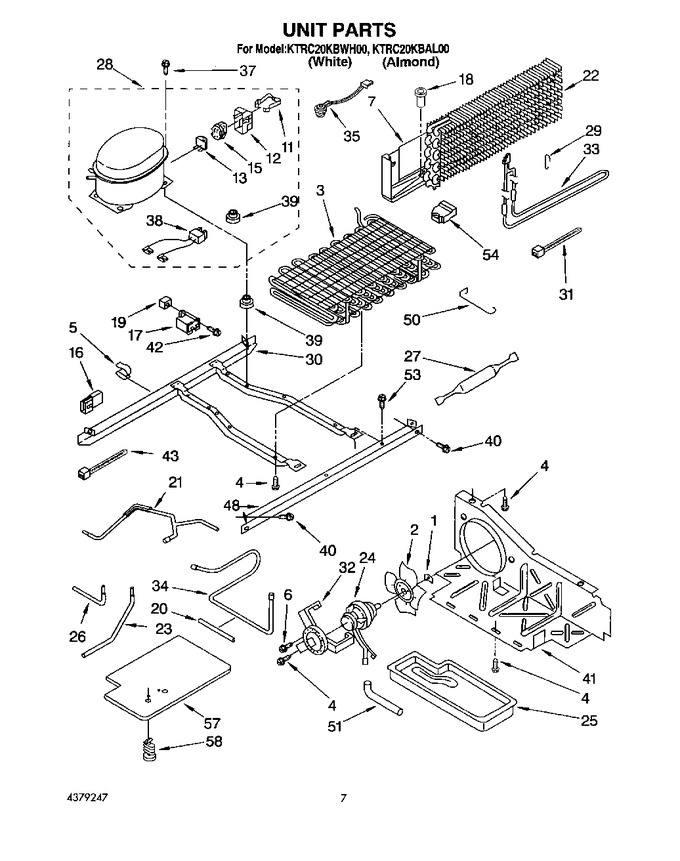

04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	851732		Fan, Blade		Appelez-nous	-
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	4387535		Overload (service (includes Relay))   (Replaces: 2154760)				$ 191.05
13	4387535		Overload (production (includes Relay))   (Replaces: 2159596)				$ 191.05
15	N/A		Relay (see Overload)		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	2154565		Running Capacitor		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	509812		Grommet, Screw		Appelez-nous	-
20	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 21.32
21	2162475		Tube, Discharge		Appelez-nous	-
22	2153978		Evaporator		Appelez-nous	-
23	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2154109		Tube, Process				$ 76.26
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	W10439652		Compressor (includes Items 11, 12, 13, 15, 17, 38 & 39) (also Order 876765 Tube Kit)   (Replaces: 2154557)				$ 442.20
29	2149120		Support, Heater		Appelez-nous	-
30	2160498		Unit Mounting Frame		Appelez-nous	-
31	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
34	2162472		Tube, Suction		Appelez-nous	-
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 47.89
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
42	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
43	WPW10339879		Strap   (Replaces: 2165001)				$ 8.30
48	2149717		Unit Mounting Rail		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	2154119		Drain Extension		Appelez-nous	-
53	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
54	1118805		Support, Evaporator (r.s.)		Appelez-nous	-
54	2159708		Support-evaporator (l.s.)		Appelez-nous	-
57	2160505		Cover, Unit Bottom		Appelez-nous	-
58	876764		Valve, Access(3/16``)			Immediately	$ 95.92
58	978030		Valve, Access (3/4``)				$ 137.25
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
58	489396		Clip				$ 11.26
58	978026		Valve, Access (5/16``)			Immediately	$ 134.49
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85

    View Diagram in Separate Window       Print Part List
