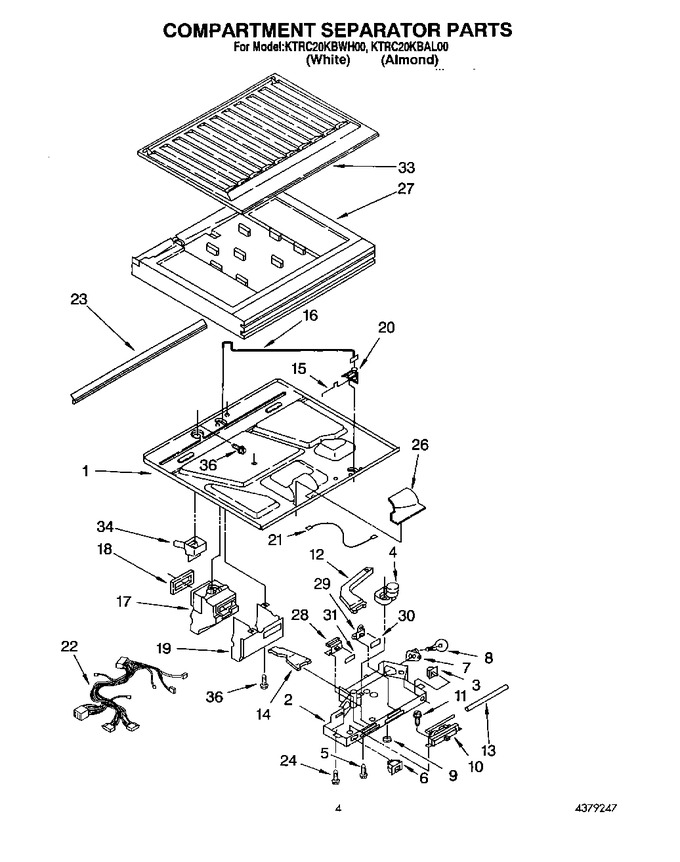

03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1125619		Bottom, Compartment Separator		Appelez-nous	-
2	1125510		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 40.40
4	W10822278		Timer, Defrost (10 Hour)   (Replaces: 2154982)			Immediately	$ 34.44
5	WP487353		Screw   (Replaces: 488693)				$ 7.95
6	1125964		Switch, Toggle		Appelez-nous	-
7	4387478		Socket (2)   (Replaces: 2162085)			Immediately	$ 115.67
8	W11679940		Bulb, Light (2)   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	2159753		Thermostat Assembly		Appelez-nous	-
11	2006254		Screw (2)   (Replaces: 489214)				$ 13.79
12	1125511		Light Pipe (r.s.)		Appelez-nous	-
13	WP2196003		Thermostat Tube Barrier   (Replaces: 1128288)				$ 8.35
14	1125512		Light Pipe (l.s.)		Appelez-nous	-
15	1125515		Connecting Rod, Short		Appelez-nous	-
16	1126148		Rod, Connecting		Appelez-nous	-
17	2157252		Air Diffuser Assembly		Appelez-nous	-
18	2157255		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	1125581		Pivot Arm		Appelez-nous	-
21	2154921		Wire Assembly		Appelez-nous	-
22	2153995		Wiring Assembly, Control Box		Appelez-nous	-
23	2159684		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
26	1108196		Insulation, Filler		Appelez-nous	-
27	1105463		Insulation, Compartment Separator		Appelez-nous	-
28	1125513		Slide, Thermostat		Appelez-nous	-
29	1125578		Slide, Air Control		Appelez-nous	-
30	1125579		Window, Air Control		Appelez-nous	-
31	1125580		Window, Thermostat		Appelez-nous	-
33	1129022		Separator, Compartment (top)		Appelez-nous	-
34	937065		Cup, Drain		Appelez-nous	-
36	WP489478		Screw   (Replaces: 489242)				$ 8.18
