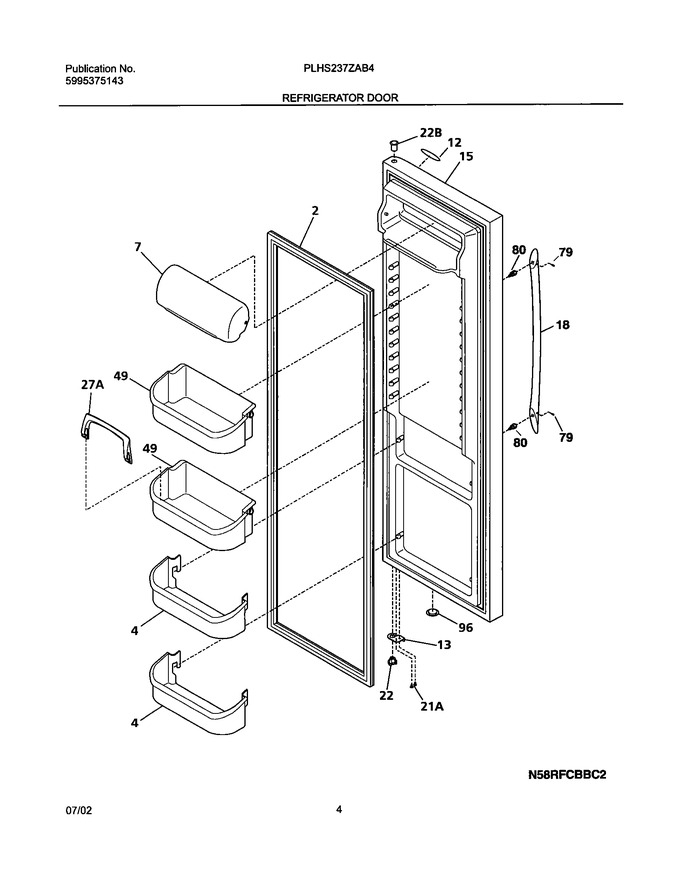

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363702		Bin-door,2-liter			Immediately	$ 84.89
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 89.78
12	240449704		Nameplate,satin Nickel				$ 72.54
13	5303918455		Door Stop,black,ref   (Replaces: 240537105)				$ 157.82
15	240451940		Door-refr,stainless Steel ,complete Assy		Appelez-nous	-
18	240536801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
22	240328201		Bearing-hinge,closer			Immediately	$ 19.69
49	240324502		Bin-door,gallon   (Replaces: 240430303)			Immediately	$ 114.01
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 20.67
96	240345506		Plug,door Foam Hole ,black				$ 51.87
21A	5304455650		Screw   (Replaces: 5308016566)				$ 15.75
22B	240328403		Bearing-hinge,upper				$ 14.85
27A	240396102		Retainer,tall Bottle				$ 21.26
F2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 240390607)			Immediately	$ 105.18
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 23.63
