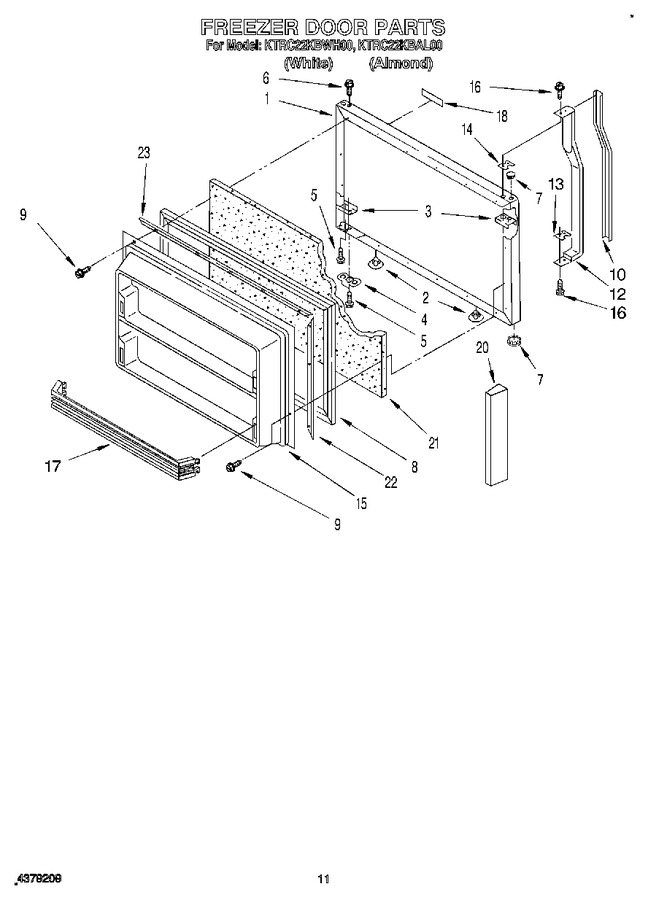

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159160		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2159163		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2188460A		Door Gasket, Magnetic   (Replaces: 2148567)				$ 231.51
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw (7 X 1/2 (12))   (Replaces: 489101)			Immediately	$ 8.40
9	WP488729		Screw ((8))   (Replaces: 489287)			Immediately	$ 8.28
10	2161541		Insert, Handle (almond)		Appelez-nous	-
10	2161540		Insert, Handle (white)		Appelez-nous	-
12	2161517		Handle		Appelez-nous	-
13	2151813		Spacer, Handle		Appelez-nous	-
14	1107628		Spacer, Handle		Appelez-nous	-
15	1117940		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	1125557		Shelf Bin (2)		Appelez-nous	-
18	2168802		Nameplate (white Model)		Appelez-nous	-
18	2168803		Nameplate (almond Model)		Appelez-nous	-
20	1125577		Dike, Door (2)		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1122553		Retainer, Gasket		Appelez-nous	-
23	1122552		Retainer, Gasket		Appelez-nous	-
