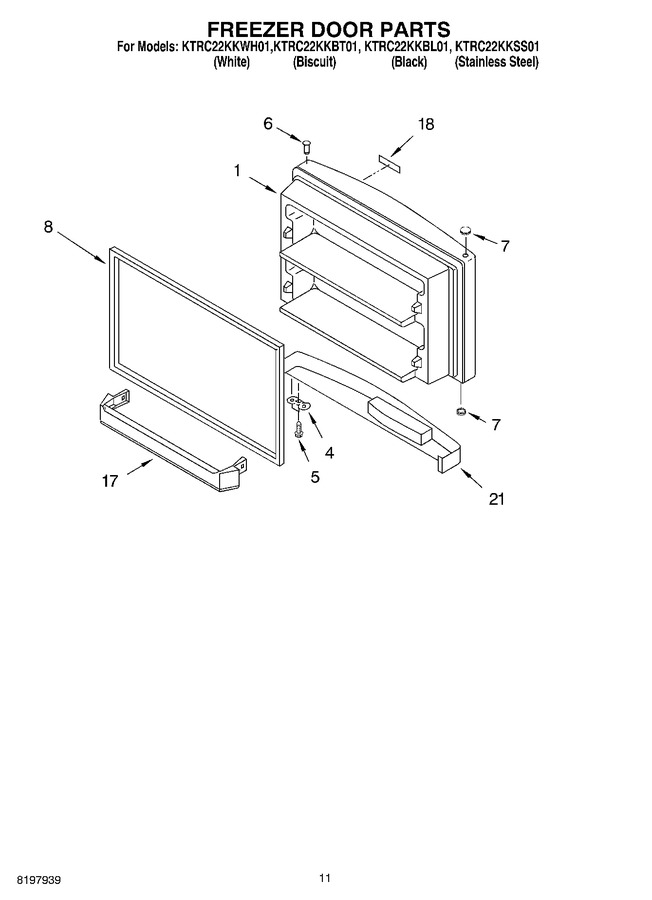

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Liner
03 - Shelf
04 - Refrigerator Door
05 - Unit
06 - Freezer Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2202520 | Freezer Door (includes No.6 & No.8) (white) |
|
- | |||||
| 1 | 2204854 | Freezer Door (includes No.6 & No.8) (biscuit) |
|
- | |||||
| 1 | 2204856 | Freezer Door (includes No.6 & No.8) (black) |
|
- | |||||
| 1 | 2212419 | Freezer Door (includes No.6 & No.8) (stainless Steel) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 7 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 8 | 2177310 | Door Gasket,magnetic (black) (Replaces: 2214969) |
|
$ 335.31 | |||||
| 8 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 336.01 | |||||
| 17 | 2159292 | Trim, Door |
|
$ 38.17 | |||||
| 18 | 2212761 | Nameplate (biscuit) |
|
- | |||||
| 18 | 2212760 | Nameplate (white) |
|
- | |||||
| 18 | 2212762 | Nameplate (black) |
|
- | |||||
| 21 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 21 | W11729596 | Kims9 (Replaces: 2155468) |
|
Immediately | $ 155.00 | ||||
| 21 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 21 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 21 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 21 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 21 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 21 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 21 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 21 | 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 21 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 21 | 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 27.77 | ||||
| 21 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 21 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 21 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 21 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 21 | 1117510 | Torx Key |
|
$ 5.84 | |||||
| 21 | 2213328 | End Cap (white) |
|
- | |||||
| 21 | 2213329 | End Cap (biscuit) |
|
- | |||||
| 21 | 2221624 | Endcap (black) |
|
$ 51.22 | |||||
| 21 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 96.42 | ||||
| 21 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 21 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 21 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 21 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 21 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 21 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 21 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 21 | 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | |||||
| 21 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 |
