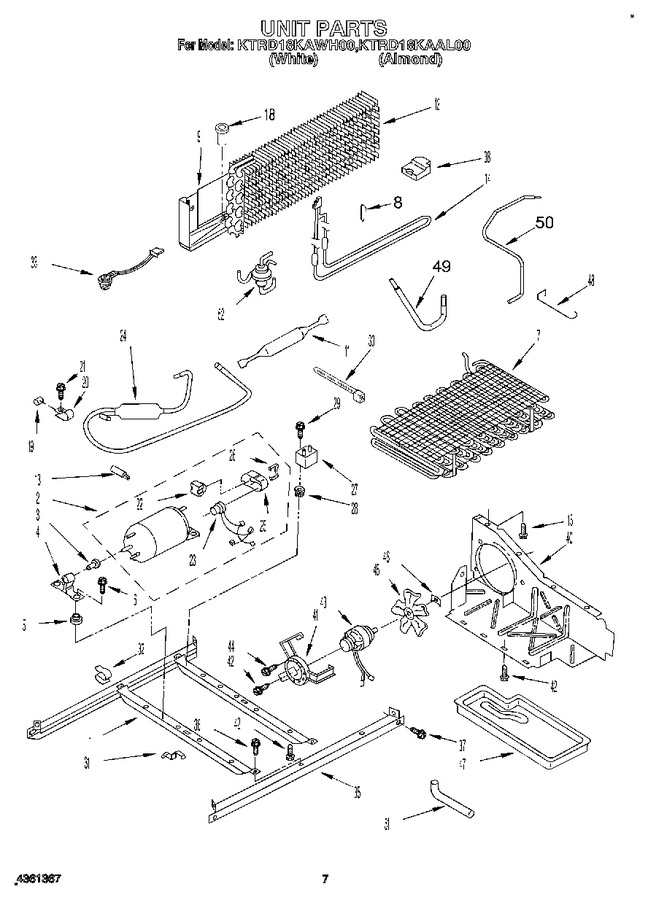

1	1116619		Unit, Frame		Appelez-nous	-
2	4318031		Compressor Kit Includes Items (22, 23, 25, 26)		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105200		Grommet, Compressor		Appelez-nous	-
6	489334		Screw		Appelez-nous	-
7	2154008		Condenser Assembly		Appelez-nous	-
8	2149120		Support, Heater		Appelez-nous	-
9	2153973		Drain Pan & Heat Shield		Appelez-nous	-
11	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
12	2153977		Evaporator		Appelez-nous	-
13	1108065		Capacitor, Start		Appelez-nous	-
14	2162020		Heater, Defrost		Appelez-nous	-
15	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
18	981629		Drain Fitting		Appelez-nous	-
19	2149670		Dampener		Appelez-nous	-
20	2159720		Tube Clamp		Appelez-nous	-
21	W11693756		Screw, 8-32 X 1/2   (Replaces: 488687)			Immediately	$ 14.76
22	1108066		Relay, Order Overload To Obtain Relay. Key No. 23 (relay) (for Service Compressor Only)		Appelez-nous	-
23	2159611		Overload		Appelez-nous	-
23	2149961		Overload, (for Service Compressor Only)		Appelez-nous	-
24	2159657		Muffler		Appelez-nous	-
25	2154452		Terminal Cover		Appelez-nous	-
25	1105221		For Service Compressor Only		Appelez-nous	-
26	1105222		Strap, Cover		Appelez-nous	-
27	WPW10662129		Running, Capacitor   (Replaces: 1118576)			Immediately	$ 58.86
27	WPW10662129		For Service Compressor   (Replaces: 1114291)			Immediately	$ 58.86
28	509812		Screw Grommet		Appelez-nous	-
29	WP489478		Screw 8 X 5/8   (Replaces: 489242)				$ 8.18
30	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
31	548744		Clip, Unit Cover		Appelez-nous	-
32	548745		Clip, Wire		Appelez-nous	-
33	WP4387503		Defrost Bimetal   (Replaces: 2149643)			Immediately	$ 47.89
35	1116622		Unit, Rail		Appelez-nous	-
36	WP489427		Screw, 1/4-28 X 1/2   (Replaces: 489339)				$ 7.84
37	489340		Screw		Appelez-nous	-
38	1118017		Wedge, Air Baffle		Appelez-nous	-
40	2154102		Air, Baffle		Appelez-nous	-
41	2162060		Fan, Mounting Bracket		Appelez-nous	-
42	WP489464		Screw, 8 X 3/8   (Replaces: 489337)			Immediately	$ 8.38
43	833697		Fan, Motor   (Replaces: 2154798)			Immediately	$ 88.15
44	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
45	1115135		Fan Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
47	1116604		Tray, Evaporator		Appelez-nous	-
48	1105612		Guard, Fan				$ 42.61
49	2159636		Tube, Valve To Heat Loop		Appelez-nous	-
50	2159635		Tube-condenser To Valve		Appelez-nous	-
51	2154118		Drain Extension		Appelez-nous	-
52	876764		Valve, Access(3/16``)			Immediately	$ 95.92
52	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
52	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
52	978028		Valve, Access (1/2)		Appelez-nous	-
52	978029		Valve Access (5/8``)				$ 93.85
52	978030		Valve, Access (3/4``)				$ 137.25
52	2159655		Valve, Fluid		Appelez-nous	-
52	978026		Valve, Access (5/16``)			Immediately	$ 134.49
