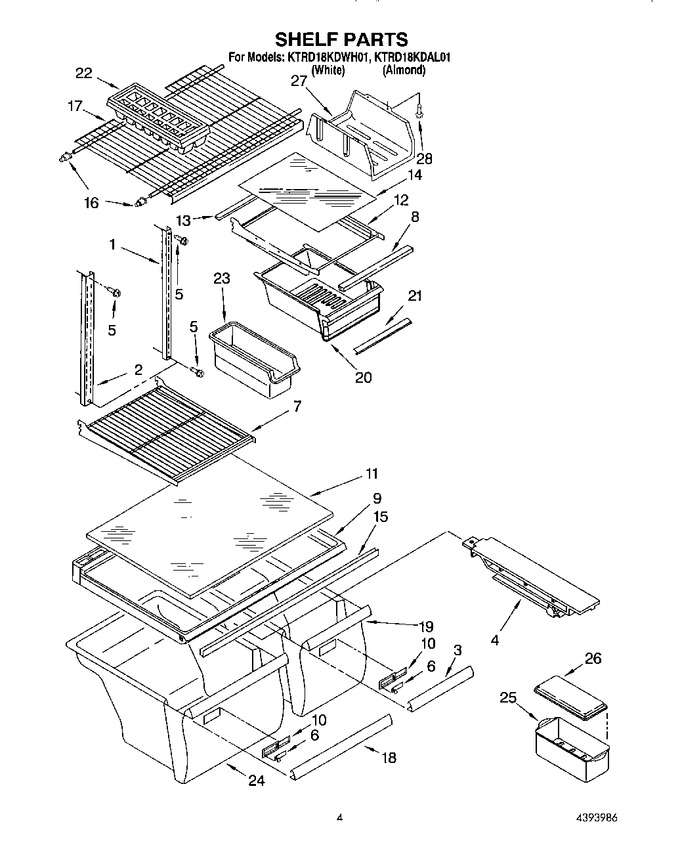

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
3	2179704		Trim, Crisper Pan		Appelez-nous	-
4	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 34.74
5	W11544659		Screw   (Replaces: 489415)				$ 13.67
6	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
7	2163853		Shelf, Cantilever (3)		Appelez-nous	-
8	2176262		Trim, Shelf		Appelez-nous	-
9	WP2314548		Crisper Cover   (Replaces: 2163833)				$ 247.46
10	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 15.06
11	WP2169921		Glass, Crisper Cover   (Replaces: 2168970)				$ 246.60
12	2176305		Pan Shelf, Cantilever		Appelez-nous	-
13	2163882		Retainer, Glass		Appelez-nous	-
14	2168969		Glass, Meat Cover		Appelez-nous	-
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 97.22
16	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
17	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 123.40
18	2179705		Trim, Crisper Pan		Appelez-nous	-
19	W10856580		Pan, Crisper   (Replaces: 2176398)			Immediately	$ 168.60
20	WP2218127K		Pan, Meat   (Replaces: 2176384)				$ 139.81
21	2176356		Trim, Meat Pan		Appelez-nous	-
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 45.56
23	WP982704		Container   (Replaces: 1116917)				$ 31.00
24	W10854037		Pan, Crisper   (Replaces: 2176399)			Immediately	$ 170.66
25	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 18.61
26	2169935		Cover, Egg Bin		Appelez-nous	-
27	2172569		Shelf, Freezer		Appelez-nous	-
28	WP489442		Screw   (Replaces: 489438)			Immediately	$ 10.94
