01 - Cabinet
02 - Freezer Door
03 - Shelf
04 - Refrigerator Door
05 - Liner
06 - Unit, Lit/optional
SELECT A DIAGRAM
New Model Search:

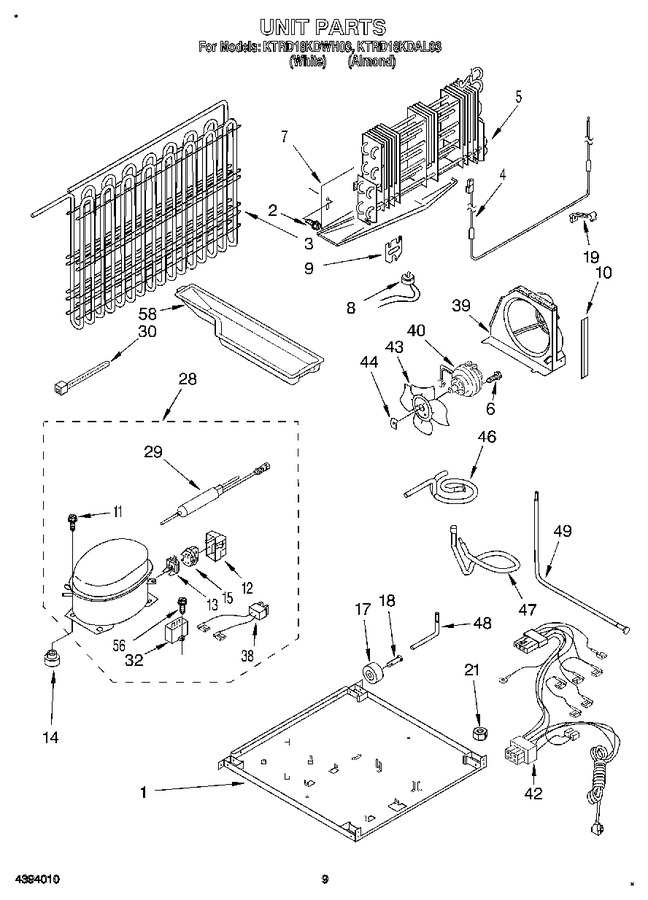

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2182437 | Plate, Unit Mounting |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 3 | 2179882 | Condenser |
|
- | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2176300) |
|
$ 104.62 | |||||
| 5 | 2176337 | Evaporator Assy. |
|
- | |||||
| 6 | 489414 | Screw |
|
- | |||||
| 7 | 2172619 | Drain Pan |
|
- | |||||
| 8 | WP4387503 | Defrost Bimetal (Replaces: 2182380) |
|
Immediately | $ 47.89 | ||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2163780 | Extension, Air Baffle |
|
- | |||||
| 11 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 12 | WP2162358 | Cover (Replaces: 2162358) |
|
$ 95.29 | |||||
| 13 | 4387913 | Overload (includes Relay) (Replaces: 2154759) |
|
Immediately | $ 84.39 | ||||
| 14 | 876811 | Grommet, (service Compressor) (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 14 | W11661108 | Grommet (4) (production) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 15 | N/A | Relay (see Overload) |
|
- | |||||
| 17 | 2163782 | Roller (2) |
|
- | |||||
| 18 | W11594405 | Rivet (Replaces: 981126) |
|
Immediately | $ 19.12 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 21 | N/A | Nut (not Serviced) |
|
- | |||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 28 | 482801 | Installation Kit |
|
$ 119.50 | |||||
| 28 | W10823815 | Compressor (includes Items 12, 13, 15, 29, 32, 38 & 56) (also Order) (Replaces: 2176820) |
|
$ 707.86 | |||||
| 29 | W10843121 | Drier (Replaces: 2174865) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 8.30 | |||||
| 32 | 2169137 | Capacitor (service Only) |
|
- | |||||
| 38 | WP2172890 | Wire Assembly (Replaces: 2172890) |
|
$ 8.51 | |||||
| 39 | 2182395 | Air Baffle |
|
- | |||||
| 40 | W10822259 | Motor, Condenser (Replaces: 2176336) |
|
Immediately | $ 221.30 | ||||
| 42 | 2182376 | Wire Assy. Unit |
|
- | |||||
| 43 | 851732 | Fan, Blade |
|
- | |||||
| 44 | WP486692 | Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 46 | 2179722 | Tube, Discharge |
|
- | |||||
| 47 | 2182415 | Tube, Suction |
|
- | |||||
| 48 | 2179725 | Tube, Process |
|
- | |||||
| 49 | 2174670 | Tube, Condenser To Heat Loop |
|
- | |||||
| 56 | W11693756 | Screw (Replaces: 487240) |
|
Immediately | $ 14.76 | ||||
| 58 | 2176379 | Door Reversal Instructions |
|
- | |||||
| 58 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 58 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 58 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 58 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 58 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 58 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 58 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 58 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 58 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 58 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 58 | 2163795 | Evap. Tray |
|
- | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 58 | 482278 | Start Kit |
|
- | |||||
| 58 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 58 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 58 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 58 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 58 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 58 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 58 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 58 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 58 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 58 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 58 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 58 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 58 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 58 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| LIT2172667 | Service & Wiring Sheet |
|
- | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| LIT2168977 | Use & Care Guide |
|
- | ||||||
| LIT2169007 | Energy Label |
|
- |
