SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Freezer Door

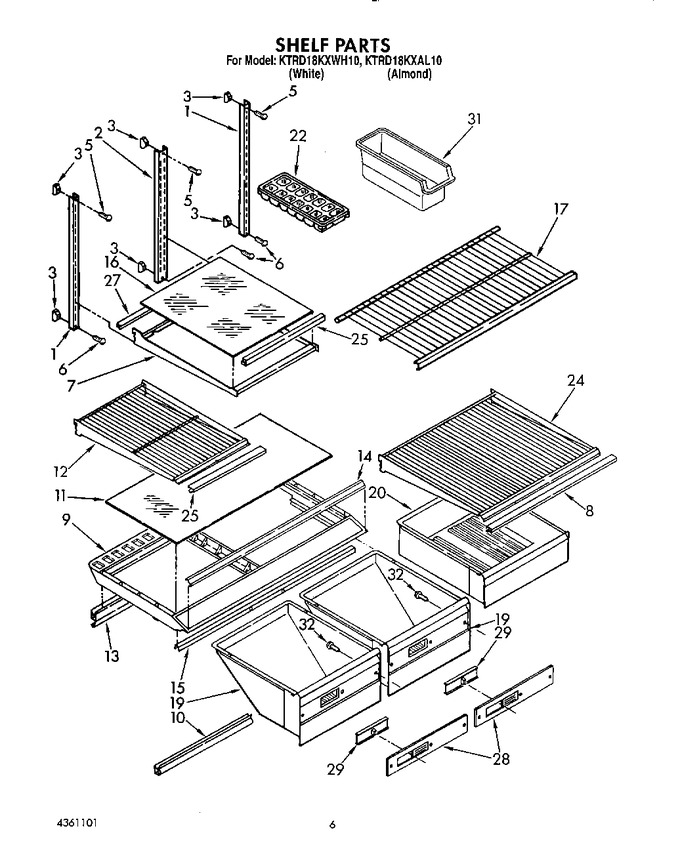

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
5	489345		Screw (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1116703		Shelf, Cantilever		Appelez-nous	-
8	1125840		Trim, Shelf		Appelez-nous	-
9	1125843		Crisper Cover		Appelez-nous	-
10	1116713		Gasket, Cover (front) (2)		Appelez-nous	-
11	1125844		Glass, Cover		Appelez-nous	-
12	1118117		Shelf Cantilever		Appelez-nous	-
13	1116714		Gasket, Cover (rear) (2)		Appelez-nous	-
14	1123002		Trim, Cover		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1116708)				$ 102.08
16	1125839		Glass, Shelf		Appelez-nous	-
17	1125849		Shelf, Freezer		Appelez-nous	-
19	1125851		Pan, Crisper		Appelez-nous	-
20	1125854		Pan, Meat		Appelez-nous	-
22	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
24	2148030		Shelf, Full Cantilever		Appelez-nous	-
25	1125841		Trim, Shelf		Appelez-nous	-
27	1118119		Retainer, Shelf		Appelez-nous	-
28	1125852		Front, Pan		Appelez-nous	-
29	1125853		Slide, Front		Appelez-nous	-
31	WP982704		Container, Ice   (Replaces: 1116917)				$ 32.55
32	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
32	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
32	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
32	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
32	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
32	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
32	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
32	833938		Kit, Terminal Connector				$ 8.47
32	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
32	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
32	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
32	489268		Screw (6)		Appelez-nous	-
32	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
32	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
32	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
32	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
32	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
32	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
32	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
32	350942		Primer White (13 Oz. Spray Can)				$ 94.14
32	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
32	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
32	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	1117510		Torx Key				$ 5.84
	1129316		Icemaker Kit Model No. Kims8   (Replaces: 1129318)			Immediately	$ 149.11
	LIT4361101		Parts List		Appelez-nous	-
	LIT2154875		Service & Wiring Sheet		Appelez-nous	-
	LIT1126439		Use & Care Guide		Appelez-nous	-
	LIT1126452		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
