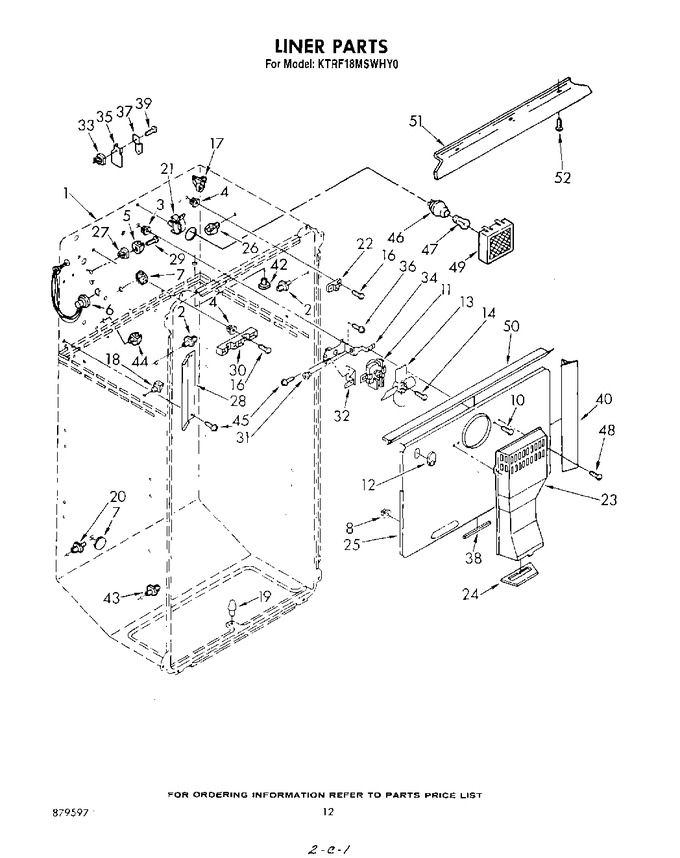

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 521878 | Stud, Shelf (2) |
|
- | |||||
| 3 | 941700 | Grommet (2) |
|
- | |||||
| 4 | 937252 | Grommet (4) |
|
- | |||||
| 5 | 836492 | Stud, Saddle |
|
- | |||||
| 6 | 937264 | Liner Wiring (ice Maker) |
|
- | |||||
| 7 | 519890 | Plug, Hole (4) |
|
- | |||||
| 8 | 848445 | Grommet (4) |
|
- | |||||
| 10 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 7.86 | ||||
| 11 | SM999 | Motor, Fan (Replaces: 941687) |
|
Immediately | $ 30.26 | ||||
| 12 | 835649 | Hole, Plug Tube |
|
- | |||||
| 13 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 14 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 16 | WP488163 | Screw, 8 X 13/16 (Replaces: 488725) |
|
$ 7.54 | |||||
| 17 | 839213 | Stud |
|
$ 295.15 | |||||
| 18 | 836374 | Stud, Retainer (4) |
|
- | |||||
| 19 | 836409 | Grommet, Post |
|
- | |||||
| 20 | 521516 | Stud, Shelf (2) |
|
- | |||||
| 21 | 851039 | Fastener, Wire |
|
- | |||||
| 22 | 937254 | Terminal Block (single) |
|
- | |||||
| 23 | 1107276 | Air Duct |
|
- | |||||
| 24 | 939099 | Sealing Gasket |
|
- | |||||
| 25 | 1107277 | Cover, Evaporator |
|
- | |||||
| 26 | 523263 | Stud, Saddle (r.s.) |
|
- | |||||
| 27 | 538449 | Grommet |
|
- | |||||
| 28 | 937269 | Wiring Shield |
|
- | |||||
| 29 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487109) |
|
Immediately | $ 7.79 | ||||
| 30 | 937253 | Terminal Block (multiple) |
|
- | |||||
| 31 | 548268 | Grommet (3) |
|
- | |||||
| 32 | 937277 | Bracket, Double |
|
- | |||||
| 33 | 842339 | Grommet |
|
- | |||||
| 34 | 937278 | Bracket, Single |
|
- | |||||
| 35 | 538532 | Screw Grommet |
|
- | |||||
| 36 | W11693756 | Screw, 8 X 5/8 (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 37 | 538533 | Support Clip, Icemaker |
|
- | |||||
| 38 | 939199 | Gasket, Sealing |
|
- | |||||
| 39 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 40 | 981750 | Gasket (2) |
|
- | |||||
| 42 | 533881 | Grommet |
|
- | |||||
| 43 | 528864 | Stud, Shelf |
|
- | |||||
| 44 | 509108 | Shelf Stud |
|
- | |||||
| 45 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 46 | 850654 | Socket |
|
- | |||||
| 47 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 48 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 7.79 | ||||
| 49 | 981365 | Light Lens |
|
- | |||||
| 50 | 939103 | Gasket, Top |
|
- | |||||
| 51 | 1107258 | Baffle, Liner Top |
|
- | |||||
| 52 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 7.86 |
