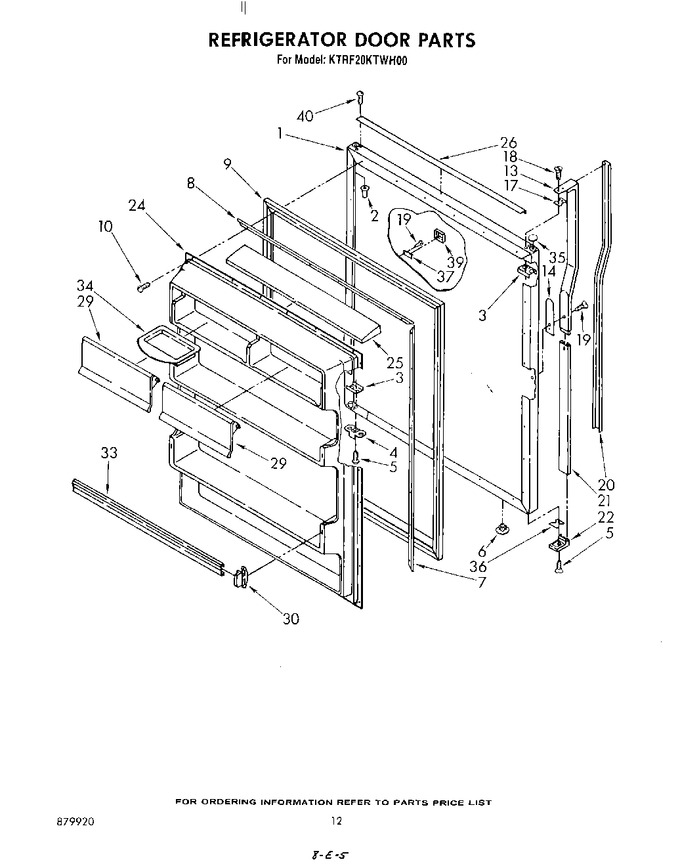

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944312 | Refrigerator Door Panel (almond) |
|
- | |||||
| 1 | 1103191 | Refrigerator Door Panel (toast) |
|
- | |||||
| 1 | 1103192 | Refrigerator Door Panel (platinum) |
|
- | |||||
| 1 | 944308 | Refrigerator Door Panel (white) |
|
- | |||||
| 2 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 3 | 943185 | Tap Plate |
|
- | |||||
| 4 | 1107202 | Bracket, Door Stop |
|
- | |||||
| 5 | 489221 | Screw (repair) |
|
- | |||||
| 5 | WP488921 | Screw (Replaces: 489220) |
|
Immediately | $ 8.24 | ||||
| 6 | 1100197 | Hole Plug (2) (platinum) |
|
- | |||||
| 6 | 1100196 | Hole Plug (2) (toast) |
|
- | |||||
| 6 | 989197 | Hole Plug (2) (almond) |
|
- | |||||
| 6 | 534927 | Hole Plug (2) (white) |
|
- | |||||
| 7 | 836117 | Retainer, Gasket Side (2) |
|
- | |||||
| 8 | 836118 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 9 | 2188450A | Door, Gasket Magnetic (Replaces: 986702) |
|
$ 284.09 | |||||
| 10 | WP681414 | Screw (repair) Cap (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 10 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 13 | 1107230 | Handle, Center |
|
- | |||||
| 14 | 1107650 | Shim, Center Handle |
|
- | |||||
| 17 | 1107192 | Spacer Handle Door |
|
- | |||||
| 18 | 489250 | Screw (repair) |
|
- | |||||
| 18 | WP488920 | Screw (Replaces: 489219) |
|
$ 7.98 | |||||
| 19 | WP488921 | Screw (Replaces: 489224) |
|
Immediately | $ 8.24 | ||||
| 20 | 1117543 | Insert, Handle |
|
- | |||||
| 21 | 1107209 | Retainer, Insert |
|
- | |||||
| 22 | 1107236 | End Cap |
|
- | |||||
| 24 | 938745 | Interior, Door Panel |
|
- | |||||
| 25 | 849802 | Door Dike |
|
- | |||||
| 26 | 1107199 | Trim Door (top) |
|
- | |||||
| 29 | 1107275 | Door, Utility |
|
- | |||||
| 30 | 839904 | Retainer, Trim (4) |
|
$ 5.65 | |||||
| 33 | 1117560 | Trim, Shelf (2) |
|
- | |||||
| 34 | 520747 | Tray, Butter |
|
- | |||||
| 35 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 35 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 35 | 989196 | Hole Plug (almond) |
|
- | |||||
| 35 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 36 | 1107229 | Shim, End Cap |
|
- | |||||
| 37 | 1107329 | Clip, Medallion |
|
- | |||||
| 39 | 1107226 | Handle Plug (white) |
|
- | |||||
| 39 | 1107722 | Handle Plug (almond) |
|
- | |||||
| 39 | 1107720 | Handle Plug (toast) |
|
- | |||||
| 39 | 1107721 | Handle Plug (platinum) |
|
- | |||||
| 40 | 489221 | Screw (repair) |
|
- | |||||
| 40 | WP488921 | Screw (Replaces: 489224) |
|
Immediately | $ 8.24 |
