SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition

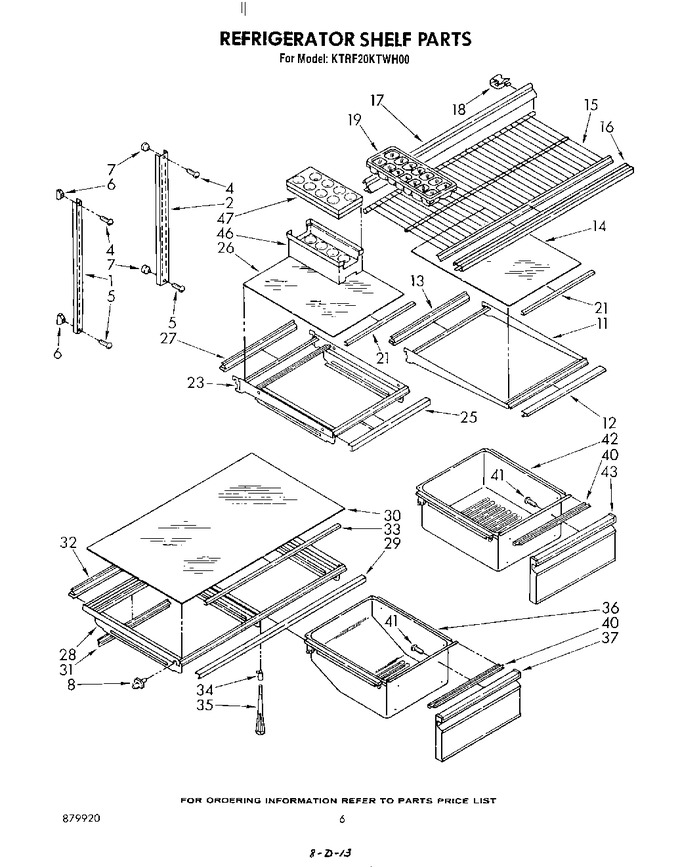

04 - Refrigerator Shelf


05 - Unit


06 - Liner


07 - Freezer Door


08 - Refrigerator Door , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107112		Shelf Ladder (2)		Appelez-nous	-
2	1107301		Shelf, Ladder Center		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	520965		Screw, Support Ladder				$ 31.35
7	520959		Screw Support, Center Ladder		Appelez-nous	-
8	529758		Shelf, Stud		Appelez-nous	-
11	1107060		Shelf, Cantilever		Appelez-nous	-
12	1107072		Trim, Shelf		Appelez-nous	-
13	1107068		Reflector, Cantilever		Appelez-nous	-
14	1107064		Glass, Cantilever		Appelez-nous	-
15	935204		Shelf, Freezer		Appelez-nous	-
16	1117541		Trim, Shelf		Appelez-nous	-
17	1117542		Reflector, Shelf		Appelez-nous	-
18	1107246		Clip, Reflector		Appelez-nous	-
19	WP841180A		Tray, Ice (4)   (Replaces: 841180)			Immediately	$ 47.84
21	1107265		Shelf, Gasket		Appelez-nous	-
23	1107080		Met Pan, Shelf Cantilever		Appelez-nous	-
25	1107136		Trim, Frame		Appelez-nous	-
26	1107088		Glass, Meat Pan		Appelez-nous	-
27	1107545		Retainer, Glass Shelf		Appelez-nous	-
28	1117539		Crisper Cover, Frame		Appelez-nous	-
29	1107294		Trim, Frame		Appelez-nous	-
30	1107353		Glass, Crisper Cover		Appelez-nous	-
31	1107480		Crisper Gasket, Rear		Appelez-nous	-
32	1107248		Reflector, Glass Shelf		Appelez-nous	-
33	1107580		Shelf Gasket, Glass (2)		Appelez-nous	-
34	1107730		Support, Crisper Cover		Appelez-nous	-
35	937340		Post, Crisper Cover		Appelez-nous	-
36	1107872		Crisper Pan (2)		Appelez-nous	-
37	1107155		Front, Crisper		Appelez-nous	-
40	1107304		Pan Gasket		Appelez-nous	-
41	WP488729		Screw, 8 X 1/2 (8)   (Replaces: 488783)			Immediately	$ 8.28
42	1107874		Pan, Meat		Appelez-nous	-
43	1107179		Front, Meat Pan		Appelez-nous	-
46	1107384		Egg Container, Bottom		Appelez-nous	-
47	1107388		Egg Container, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
