SELECT A DIAGRAM
01 - Color Variation Parts

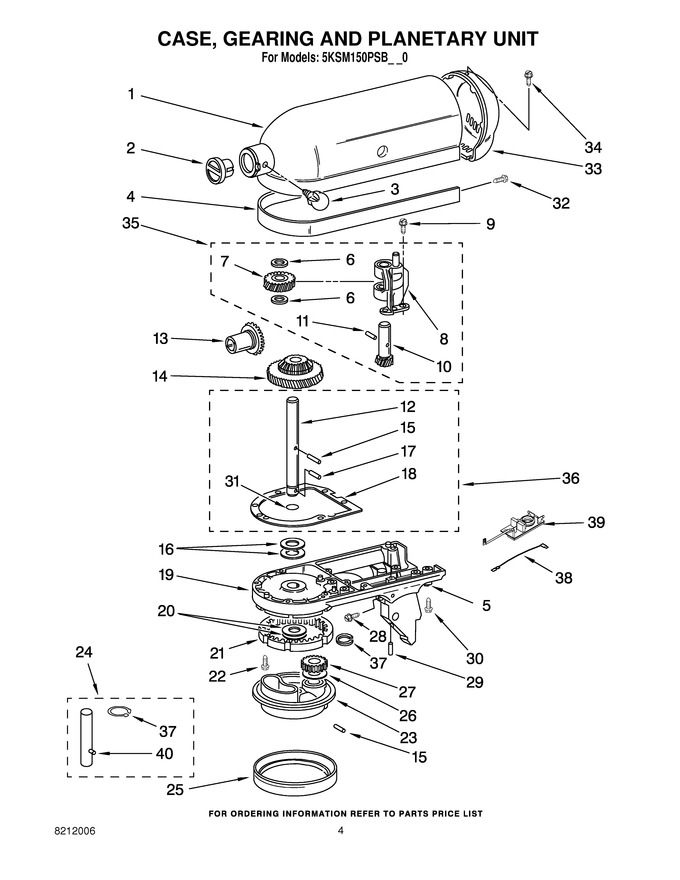

02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
04 - Base And Pedestal Unit - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11831059 | Cap, Attachment Hub (chrome) (Replaces: 242765-2) |
|
Immediately | $ 15.12 | ||||
| 3 | WP9709194 | Thumb Screw (black) (Replaces: 240374) |
|
Immediately | $ 20.14 | ||||
| 5 | WP8533914 | Lock Washer (Replaces: 4159479) |
|
Immediately | $ 4.72 | ||||
| 6 | WPW10323373 | Washer (Replaces: 3180161) |
|
Immediately | $ 4.72 | ||||
| 7 | WPW10112253 | Worm Gear (Replaces: 4162897) |
|
Immediately | $ 13.47 | ||||
| 8 | W11082541 | Worm Gear Bracket And Bearing (Replaces: 240308) |
|
$ 14.78 | |||||
| 9 | W11097298 | Screw (Replaces: 3400022) |
|
- | |||||
| 10 | WP240210-2 | Shaft & Pinion (Replaces: 240210-2) |
|
Immediately | $ 11.88 | ||||
| 11 | WP9705444 | Pin (Replaces: 9705444) |
|
Immediately | $ 4.84 | ||||
| 12 | WP240026 | Shaft, Vertical Center (Replaces: 240026) |
|
Immediately | $ 9.14 | ||||
| 13 | W11192794 | Gear, Attachment Hub Bevel (Replaces: 9703907) |
|
Immediately | $ 40.69 | ||||
| 14 | W11192794 | Bevel Pinion (Replaces: 9703905) |
|
Immediately | $ 40.69 | ||||
| 15 | WP9707223 | Pin, Agitator Shaft (Replaces: 240018-1) |
|
Immediately | $ 5.08 | ||||
| 16 | WPW10323378 | Washer (Replaces: 3180163) |
|
Immediately | $ 10.83 | ||||
| 17 | W11762673 | Pin, Grooved (Replaces: 9705443) |
|
Immediately | $ 4.25 | ||||
| 18 | W11805888 | Gasket, Transmission Case (Replaces: 4162324) |
|
Immediately | $ 46.84 | ||||
| 20 | WPW10323378 | Washer (Replaces: 3180163) |
|
Immediately | $ 10.83 | ||||
| 21 | W11340106 | Gear, Internal (Replaces: 9703904) |
|
$ 18.56 | |||||
| 22 | VT9 | Screw, Special (Replaces: 103994) |
|
$ 37.35 | |||||
| 24 | WP243368 | Agitator Shaft (Replaces: 3184052) |
|
Immediately | $ 17.29 | ||||
| 25 | WP240285 | Ring, Planetary-standard Finish (Replaces: 240285) |
|
Immediately | $ 9.06 | ||||
| 25 | W11384784 | Ring, Planetary-polished Finish (Replaces: 240285-2) |
|
$ 14.21 | |||||
| 26 | 3180160 | Washer |
|
$ 18.10 | |||||
| 27 | W11133645 | Pinion, Gear (agitator Shaft) (Replaces: 9703903) |
|
$ 4.92 | |||||
| 28 | W11028216 | Screw (Replaces: 4160413) |
|
$ 5.22 | |||||
| 29 | WP3400203 | Screw, Set (Replaces: 3400203) |
|
Immediately | $ 5.04 | ||||
| 30 | WP3400025 | Screw, Machine (Replaces: 3400025) |
|
$ 4.62 | |||||
| 31 | WP67500-55 | O-ring (Replaces: 67500-55) |
|
Immediately | $ 4.52 | ||||
| 32 | WP313808 | Screw (Replaces: 311932) |
|
$ 8.30 | |||||
| 34 | WP241877 | Screw (Replaces: 4162914) |
|
$ 4.15 | |||||
| 35 | WP240309-2 | Worm Gear Bracket & Gear (Replaces: 240309-2) |
|
Immediately | $ 39.53 | ||||
| 36 | 4160474 | Center Shaft & ``o`` Ring |
|
$ 28.53 | |||||
| 37 | WP9703438 | Ring (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 38 | 9702311 | Lead, Filter Control Board |
|
- | |||||
| 39 | 4176340 | Rfi Filter (Replaces: 9705132) |
|
- | |||||
| 40 | W11664709 | Pin, Groove (Replaces: 9704677) |
|
Immediately | $ 6.75 |
