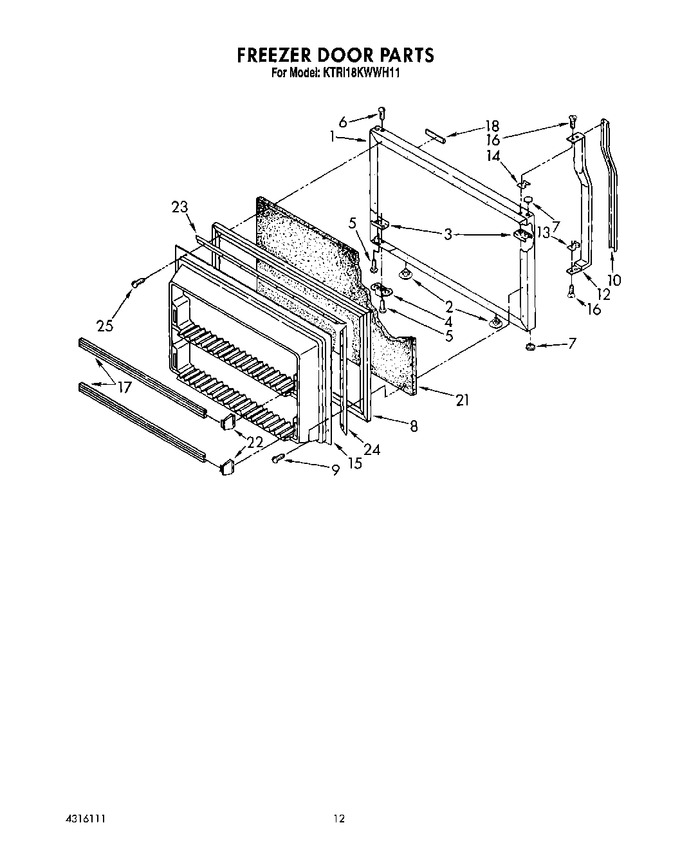

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116589		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1116586		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	1125888		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	1125694		Insert, Handle (almond)		Appelez-nous	-
10	1125693		Insert, Handle (white)		Appelez-nous	-
12	1107238		Handle Assembly		Appelez-nous	-
13	1107192		Spacer, Handle		Appelez-nous	-
14	1107628		Spacer, Handle		Appelez-nous	-
15	1116610		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	1125866		Trim, Door Shelf (2)		Appelez-nous	-
18	1125818		Nameplate		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.90
23	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
24	1115138		Retainer, Gasket Side (2)		Appelez-nous	-
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28

    View Diagram in Separate Window       Print Part List
