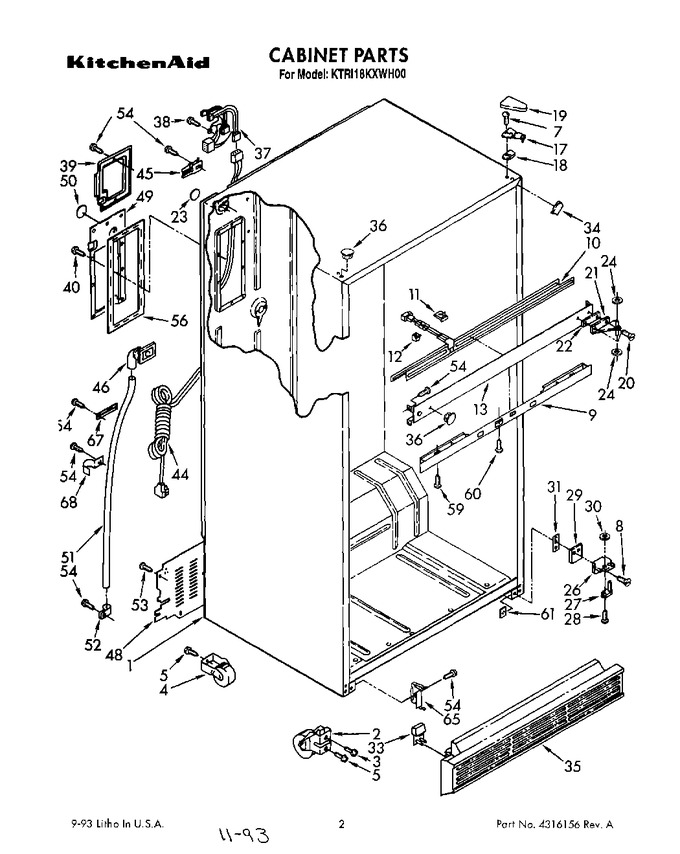

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489333		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 42.18
5	WP489427		Screw (4)   (Replaces: 489339)				$ 7.84
7	WP489349		Screw,   (Replaces: 489349)			Immediately	$ 8.43
8	489327		Screw		Appelez-nous	-
9	1125834		Control, Front Cover		Appelez-nous	-
10	1116548		Heater, Mullion		Appelez-nous	-
11	2149060		Clip, Mullion (3)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	1116543		Center Rail (almond)		Appelez-nous	-
13	1116540		Center Rail (white)		Appelez-nous	-
17	1129045		Hinge, Top				$ 15.65
18	1100511		Shim, Hinge Top		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
20	WP999367		Screw   (Replaces: 489105)				$ 8.56
21	2151453		Hinge, Center		Appelez-nous	-
22	836194		Shim, Hinge Center		Appelez-nous	-
23	1129056		Hole Seal		Appelez-nous	-
24	WP488296		Washer, 11/64   (Replaces: 488296)			Immediately	$ 7.55
26	836159		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	1123379		Shim, Bottom		Appelez-nous	-
30	WP487802		Washer, 7/32   (Replaces: 488184)			Immediately	$ 7.91
31	1121117		Spacer		Appelez-nous	-
33	1125665		Corner Filler, Grille (white)		Appelez-nous	-
33	1125670		Corner Filler, Grille (almond)		Appelez-nous	-
34	1118058		Filler, Wrapper Corner (2) (white)		Appelez-nous	-
34	1118059		Filler, Wrapper Corner (2) (almond)		Appelez-nous	-
35	1125669		Grille (almond)		Appelez-nous	-
35	1125664		Grille (white)		Appelez-nous	-
36	989195		Hole Plug (4) (almond)		Appelez-nous	-
36	842031		Hole Plug (4) (white)		Appelez-nous	-
37	2149633		Cabinet, Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	1105606		Cover, Wiring		Appelez-nous	-
40	WP489464		Screw (10)   (Replaces: 489337)			Immediately	$ 8.38
41	WP2151652		Hole Plug (white)   (Replaces: 2151652)				$ 22.87
41	2151653		Hole Plug (almond)		Appelez-nous	-
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	937062		Fitting, Drain		Appelez-nous	-
48	1116613		Cover, Unit		Appelez-nous	-
49	2147326		Cover, Plug		Appelez-nous	-
50	1120224		Hole Seal		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 940091)				$ 125.72
52	836077		Clamp		Appelez-nous	-
53	WPW10141645		Screw, 8 X 1/2 (7)   (Replaces: 489084)				$ 8.05
54	WP489478		Screw   (Replaces: 489242)				$ 8.18
56	1114548		Gasket, Cover		Appelez-nous	-
59	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488540)				$ 7.92
60	WP489174		Screw (2)   (Replaces: 489174)				$ 7.30
61	2147310		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille Retainer (2)   (Replaces: 1114789)			Immediately	$ 8.11
67	1105607		Tube Clamp		Appelez-nous	-
68	1110564		Clamp, Tube		Appelez-nous	-
