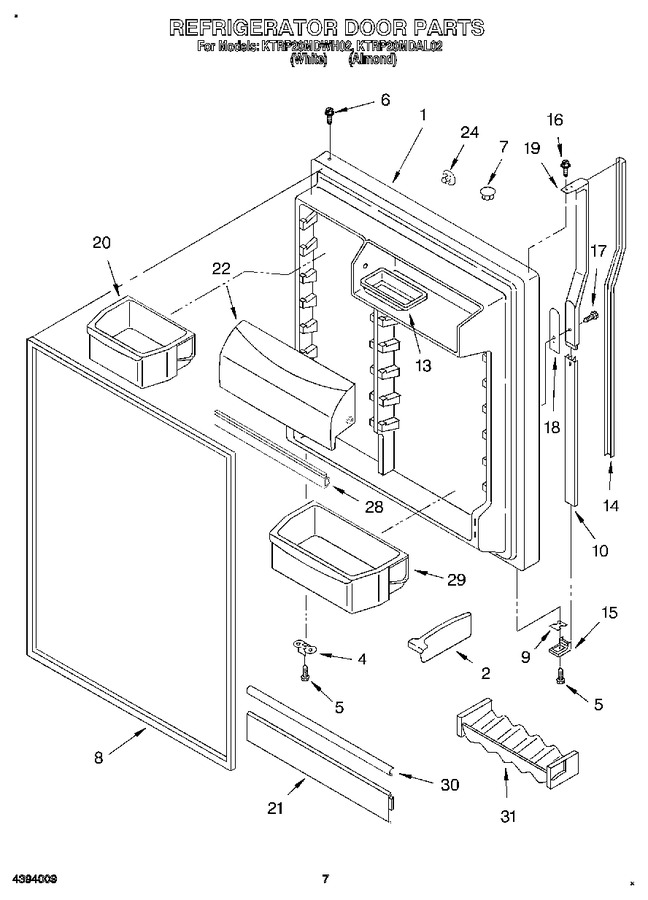

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177215		Refrigerator Door (includes No.8) (white)		Appelez-nous	-
1	2177216		Refrigerator Door (includes No.8) (almond)		Appelez-nous	-
2	2171283		Divider, Door Bin		Appelez-nous	-
4	2159368		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2177313		Door Gasket, Magnetic (service)		Appelez-nous	-
9	2151813		Shim, Handle		Appelez-nous	-
10	2168900		Retainer, Insert		Appelez-nous	-
13	1125936		Butter, Tray		Appelez-nous	-
14	2168896		Insert, Handle (white)		Appelez-nous	-
14	2168897		Insert, Handle (almond)		Appelez-nous	-
15	1107236		End Cap, Handle		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
18	1107650		Spacer, Handle		Appelez-nous	-
19	2161508		Handle				$ 111.30
20	2171066		Bin, Door Shelf (3)		Appelez-nous	-
21	WPW10421486		Trivet   (Replaces: 2171198)				$ 114.74
22	2182399		Door, Compartment		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171063		Bin, Door Shelf		Appelez-nous	-
30	WPW10421486		Trim, Trivet   (Replaces: 2177252)				$ 114.74
31	1125981		Holder, Beverage		Appelez-nous	-
