Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2200928 Freezer Door (includes Illus. 6,9 & 8) (biscuit) Appelez-nous -
1 2183862 Freezer Door (includes Illus. 6,9 & 8) (white) Appelez-nous -
1 2200621 Freezer Door (includes Illus. 6,9 & 8) (black) Appelez-nous -
1 2218678 Freezer Door (includes Illus. 6,9 & 8) (stainless Steel) Appelez-nous -
2 WP2195916K Endcap, Trim (4)   (Replaces: 2195916) In-Stock Immediately $ 13.18

3 WP8281206 Screw 8 X 1/2   (Replaces: 8281206) Special Order $ 8.37

4 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 13.37

5 WP488921 Screw   (Replaces: 488921) In-Stock Immediately $ 8.24

6 WP2183003 Thimble   (Replaces: 2183003) Special Order $ 8.14

7 WP2212648 Hole Plug (white)   (Replaces: 2212648) In-Stock Immediately $ 8.19

7 WP2212651 Hole Plug (black)   (Replaces: 2212651) Special Order $ 24.21

7 WP2212649 Hole Plug (biscuit)   (Replaces: 2212649) Special Order $ 7.99

8 2177310 Door Gasket,magnetic (black)   (Replaces: 2214969) Special Order $ 335.31

8 2159060 Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967) Special Order $ 336.01

9 2183000 Tap Plate Special Order $ 36.19

12 2195994B Endcap, Short (black) Special Order $ 17.06

12 2195994T Endcap, Short (biscuit) Special Order $ 10.55

12 2195994W Endcap, Short (white) Special Order $ 17.06

15 2195995W Endcap, Long (white) Special Order $ 10.04

15 2195995B Endcap, Long (black) Special Order $ 24.15

15 2195995T Endcap, Long (biscuit) Appelez-nous -
16 WP489357 Screw   (Replaces: 489357) In-Stock Immediately $ 7.55

17 2195947 Trim, Door Shelf (2) Special Order $ 50.94

18 2212761 Nameplate (biscuit) Appelez-nous -
18 2212760 Nameplate (white) Appelez-nous -
18 2212762 Nameplate (black) Appelez-nous -
19 2195992W Insert, Retainer (white) Appelez-nous -
19 2195992B Insert, Retainer (black) Appelez-nous -
19 2195992T Insert, Retainer (biscuit) Appelez-nous -
21 2188154 Insert, Handle (black) Appelez-nous -
21 2195984 Insert, Handle (white) Appelez-nous -
21 2200933 Insert, Handle (biscuit) Appelez-nous -

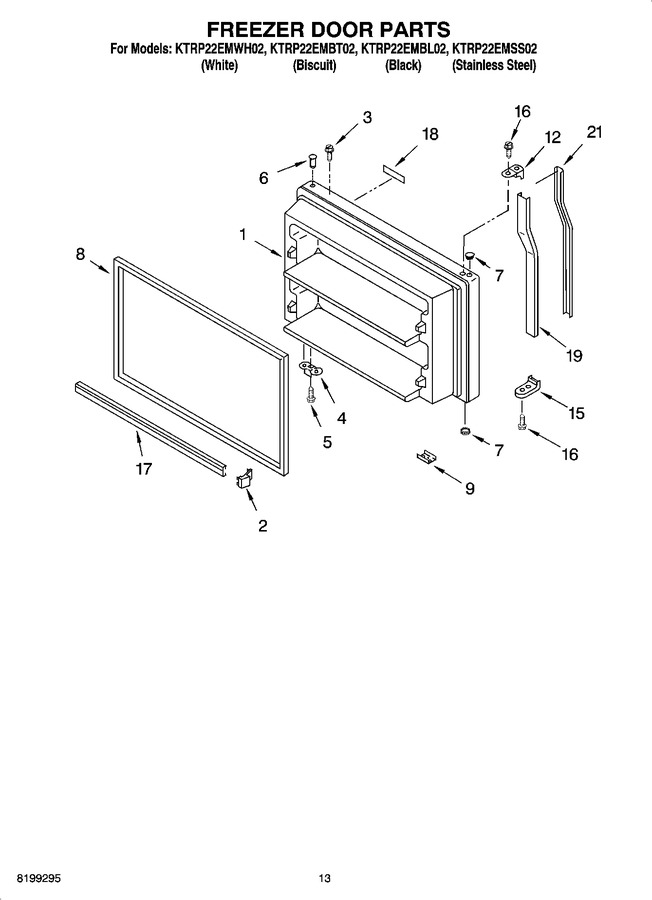

    View Diagram in Separate Window     Print Icon   Print Part List
