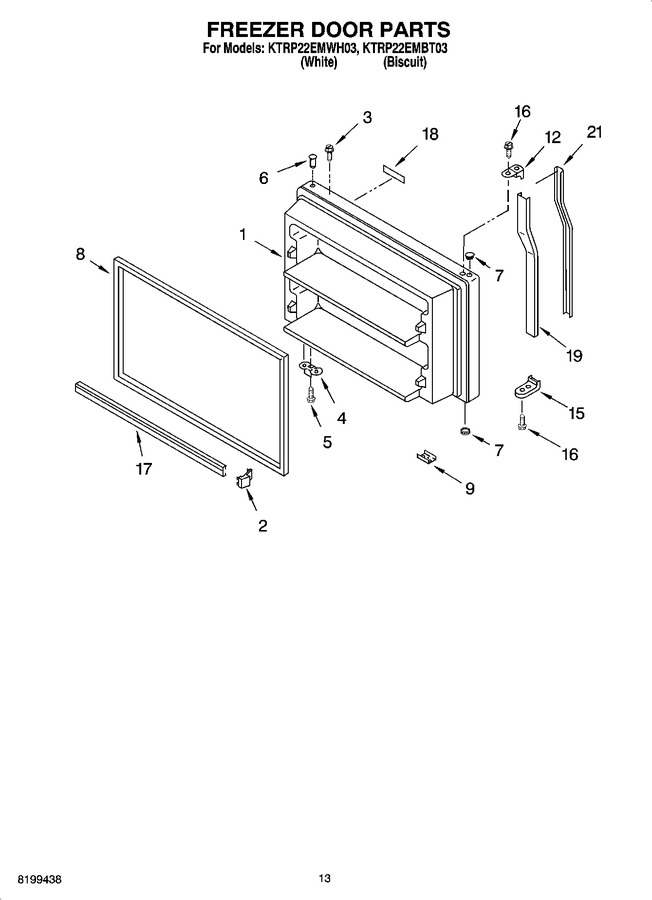

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183862 | Freezer Door (includes Illus. 6,9 & 8) (white) |
|
- | |||||
| 1 | 2200928 | Freezer Door (includes Illus. 6,9 & 8) (biscuit) |
|
- | |||||
| 2 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 3 | WP8281206 | Screw 8 X 1/2 (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159060 | Door Gasket, Magnetic (Replaces: 2214967) |
|
$ 336.01 | |||||
| 9 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 12 | 2195994W | Endcap, Short (white) |
|
$ 17.06 | |||||
| 12 | 2195994T | Endcap, Short (biscuit) |
|
$ 10.55 | |||||
| 15 | 2195995T | Endcap, Long (biscuit) |
|
- | |||||
| 15 | 2195995W | Endcap, Long (white) |
|
$ 10.04 | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | 2195947 | Trim, Door Shelf (2) |
|
$ 50.94 | |||||
| 18 | 2212760 | Nameplate (white) |
|
- | |||||
| 18 | 2212761 | Nameplate (biscuit) |
|
- | |||||
| 19 | 2195992W | Insert, Retainer (white) |
|
- | |||||
| 19 | 2195992T | Insert, Retainer (biscuit) |
|
- | |||||
| 21 | 2200933 | Insert, Handle (biscuit) |
|
- | |||||
| 21 | 2195984 | Insert, Handle (white) |
|
- |
