01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

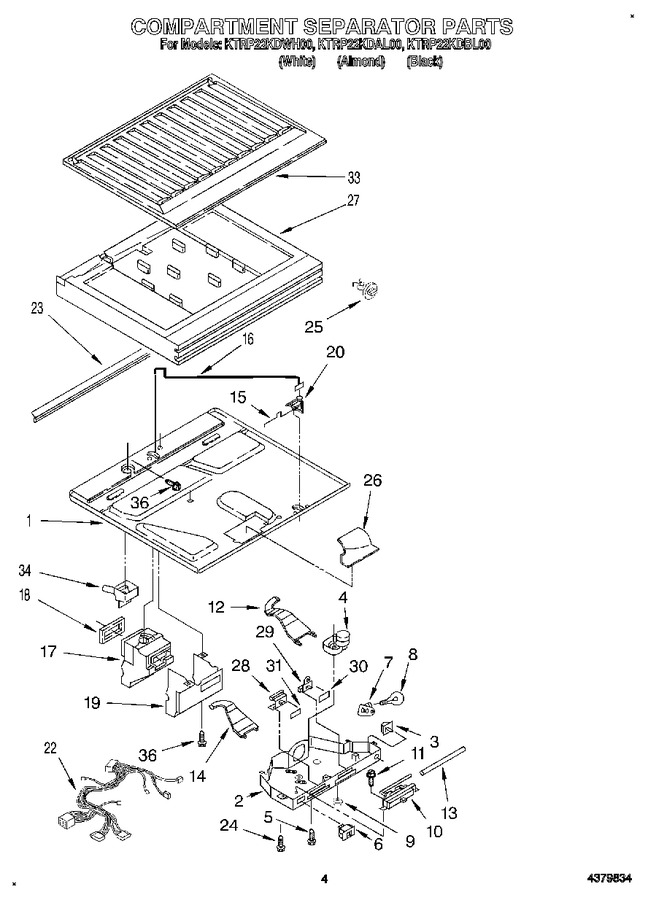

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174811		Bottom, Compartment Separator		Appelez-nous	-
2	2174829		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 45.66
4	WP2183400		Timer, Defrost (10 Hour)   (Replaces: 2162044)			Immediately	$ 88.87
5	WP487353		Screw   (Replaces: 488693)				$ 7.95
6	1125964		Switch, Toggle		Appelez-nous	-
7	WPW10119935		Socket   (Replaces: 2155597)				$ 106.16
8	W10887190		Bulb, Light   (Replaces: 2160708)			Immediately	$ 19.23
9	940014		Hole Plug				$ 18.33
10	2159753		Thermostat		Appelez-nous	-
11	2006254		Screw   (Replaces: 489214)				$ 13.79
12	2160641		Light Pipe (r.s.)		Appelez-nous	-
13	WP2196003		Tube Barrier, Thermostat   (Replaces: 1128288)				$ 8.35
14	2160640		Light Pipe (l.s.)		Appelez-nous	-
15	1125515		Connecting Rod, Short		Appelez-nous	-
16	1125514		Rod, Connecting		Appelez-nous	-
17	2157253		Air Diffuser Assembly		Appelez-nous	-
18	2157255		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	1125581		Pivot Arm		Appelez-nous	-
22	2160799		Wiring Assembly, Control Box		Appelez-nous	-
23	2159684		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
25	2172812		Clip		Appelez-nous	-
26	1108196		Insulation, Filler		Appelez-nous	-
27	2174366		Insulation, Compartment Separator		Appelez-nous	-
28	1125513		Slide, Thermostat		Appelez-nous	-
29	1125578		Slide, Air Control		Appelez-nous	-
30	1125579		Window, Air Control		Appelez-nous	-
31	1125580		Window, Thermostat		Appelez-nous	-
33	2174327		Separator, Compartment (top)		Appelez-nous	-
34	937065		Cup, Drain		Appelez-nous	-
36	WP489478		Screw   (Replaces: 489242)				$ 8.18
