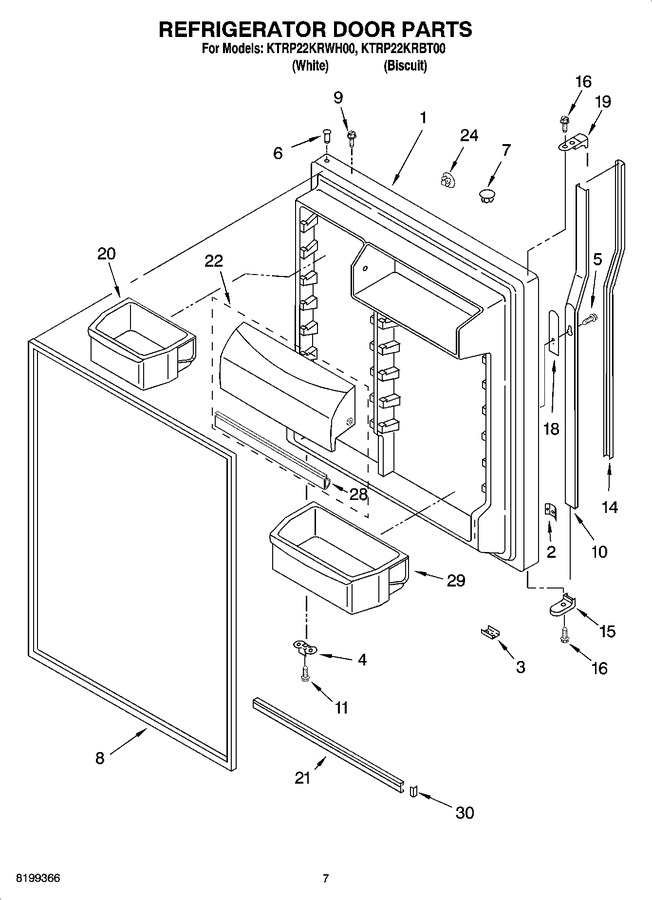

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2198970 | Refrigerator Door (includes Illus. 2,3,6 & 8) (white) |
|
- | |||||
| 1 | 2200927 | Refrigerator Door (includes Illus. 2,3,6 & 8) (biscuit) |
|
- | |||||
| 2 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 3 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | 3400873 | Screw, 8 X 1/2 |
|
- | |||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 9 | WP8281206 | Screw 8 X 1/2 (Replaces: 8281206) |
|
$ 8.37 | |||||
| 10 | 2188222W | Retainer, Insert (white) |
|
- | |||||
| 10 | 2188222T | Retainer, Insert (biscuit) |
|
- | |||||
| 11 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 14 | 2195986 | Insert, Handle (white) |
|
- | |||||
| 14 | 2200932 | Insert, Handle (biscuit) |
|
- | |||||
| 15 | 2200930 | Endcap, Handle (short) (biscuit) |
|
- | |||||
| 15 | 2195990 | Endcap, Handle (short) (white) |
|
$ 9.50 | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 18 | 2188146 | Spacer, Handle |
|
- | |||||
| 19 | 2195995W | Endcap, Handle (long) (white) |
|
$ 10.04 | |||||
| 19 | 2195995T | Endcap, Handle (long) (biscuit) |
|
- | |||||
| 20 | 2171064 | Bin, Door Shelf (2) |
|
- | |||||
| 21 | WPW10421486 | Shelf, Trim (Replaces: 2195948) |
|
$ 114.74 | |||||
| 22 | 2218119 | Door Compartment |
|
- | |||||
| 24 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 28 | 2159124 | Gasket, Door Compartment |
|
- | |||||
| 29 | 2171062 | Bin, Door Shelf |
|
$ 40.08 | |||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 |
