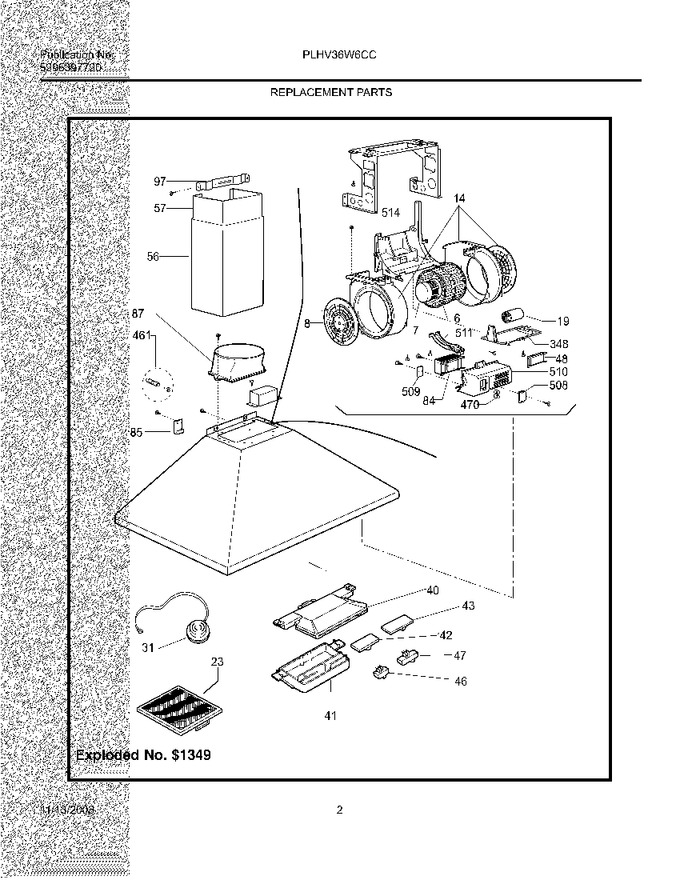

03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304425238		Support,motor		Appelez-nous	-
14	5304425239		Housing,blower Fan		Appelez-nous	-
40	5304435617		Control Box				$ 93.42
41	5304425244		Control Panel				$ 281.93
42	5304425245		Actuator,lamp Key				$ 134.19
43	5304425246		Actuator,motor Key				$ 82.58
56	5304425250		Chimney,duct Cover ,lower ,fixed		Appelez-nous	-
57	5304425251		Chimney,duct Cover ,upper ,sliding		Appelez-nous	-
85	5304425253		Bracket,mounting Hook ,hood Rear		Appelez-nous	-
87	5304425254		Connector,transition Duct		Appelez-nous	-
97	5304425255		Bracket,chimney Support ,ceiling/rear		Appelez-nous	-
348	5304425256		Cover,capacitor Box		Appelez-nous	-
461	5304425257		Anchor Assy,drywall ,with Screw		Appelez-nous	-
508	5304425259		Cover,fuse		Appelez-nous	-
509	5304425260		Plate,fuse Holder		Appelez-nous	-
510	5304425261		Housing,transformer Box		Appelez-nous	-
511	5304425262		Channel,xfmr Box Canal		Appelez-nous	-
514	5304425263		Housing,capacitor Box		Appelez-nous	-
F19	5304425240		Capacitor,12.5 Microfarad		Appelez-nous	-
F23	5304425241		Filter,grease ,aluminum ,washable		Appelez-nous	-
F31	5304425242		Lamp Assy,halogen G4 Base ,20 W ,12 V ,w/holder,cover		Appelez-nous	-
F46	5304425247		Switch,light ,sliding				$ 264.35
F47	5304425248		Switch,fan Motor ,sliding				$ 38.66
F470	5304425258		Fuse				$ 164.43
F48	5304425249		Control Board,printed Circuit ,120 V				$ 431.03
F6	5304425236		Blower Wheel,fan				$ 380.89
F7	5304425237		Motor,blower Fan				$ 712.47
F84	5304425252		Transformer,60 Hz ,120 V				$ 357.37
