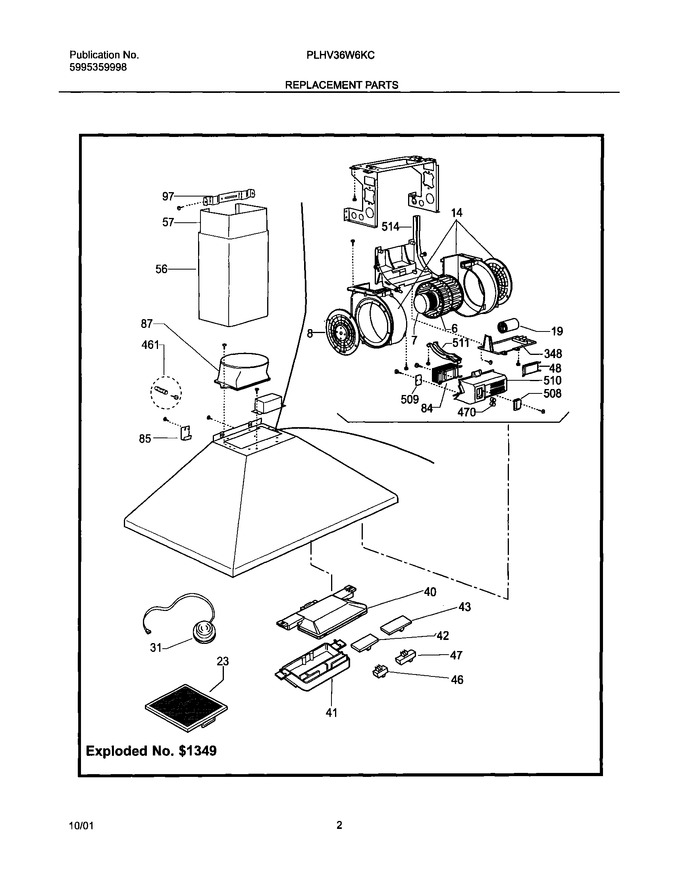

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304425238		Support,motor		Appelez-nous	-
14	5304425239		Housing,blower Fan		Appelez-nous	-
40	5304425243		Housing,controls		Appelez-nous	-
41	5304425244		Panel,control				$ 281.93
42	5304425245		Actuator,light Key				$ 134.19
43	5304425246		Actuator,motor Key				$ 82.58
56	5304425250		Chimney,exhaust Duct ,lower Extension ,fixed		Appelez-nous	-
57	5304425251		Chimney,exhaust Duct ,upper Extension ,sliding		Appelez-nous	-
85	5304425253		Bracket,hood Support ,rear ,u-hook		Appelez-nous	-
87	5304425254		Duct,air Exhaust ,connector		Appelez-nous	-
97	5304425255		Bracket,chimney Support ,rear		Appelez-nous	-
348	5304425256		Cover,capacitor		Appelez-nous	-
461	5304425257		Plug,with Screw		Appelez-nous	-
508	5304425259		Cover,fuse		Appelez-nous	-
509	5304425260		Plate,fuse Mounting		Appelez-nous	-
510	5304425261		Housing,transformer Box		Appelez-nous	-
511	5304425262		Channel,xfmr Box Canal		Appelez-nous	-
514	5304425263		Housing,capacitor Box		Appelez-nous	-
F19	5304425240		Capacitor		Appelez-nous	-
F23	5304425241		Filter,range Hood ,framed Grid		Appelez-nous	-
F31	5304425242		Lamp,halogen ,with Holder		Appelez-nous	-
F46	5304425247		Switch,light				$ 264.35
F47	5304425248		Switch,fan Motor				$ 38.66
F470	5304425258		Fuse				$ 164.43
F48	5304425249		Circuit Board,printed ,control				$ 431.03
F6	5304425236		Blower Wheel,fan				$ 380.89
F7	5304425237		Motor,blower Fan				$ 712.47
F84	5304425252		Ballast,lamp				$ 357.37
NI	218395401		Nameplate		Appelez-nous	-
