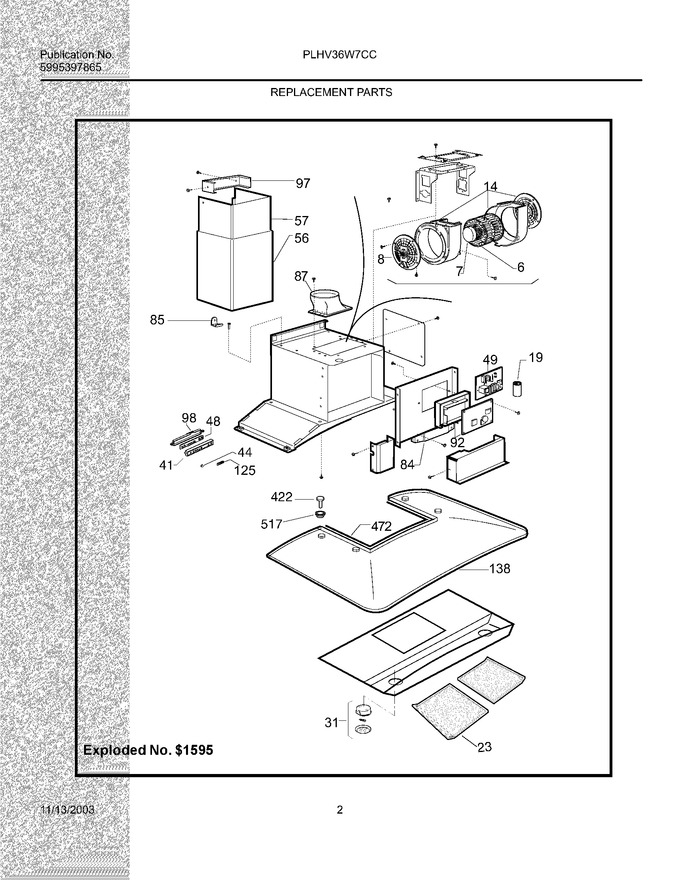

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304425238		Support,motor		Appelez-nous	-
14	5304425239		Housing,blower Fan		Appelez-nous	-
41	5304435307		Control Panel		Appelez-nous	-
44	5304425267		Pushbutton,control Key ,chrome				$ 153.41
56	5304435655		Chimney,duct Cover ,lower ,fixed				$ 366.03
57	5304435309		Chimney,duct Cover ,upper ,sliding		Appelez-nous	-
85	5304425273		Bracket,mounting Hook ,hood Rear				$ 191.42
87	5304425254		Connector,transition Duct		Appelez-nous	-
92	5304425274		Control Box		Appelez-nous	-
97	5304425275		Bracket,chimney Support ,ceiling/rear				$ 393.33
98	5304435310		Cover,switch		Appelez-nous	-
125	5304425277		Cover,plaque ,glass		Appelez-nous	-
138	5304435311		Canopy,mantle ,glass		Appelez-nous	-
422	5304435312		Screw,canopy Mounting ,m6 X 20		Appelez-nous	-
472	5304425281		Gasket,canopy Seal ,rubber		Appelez-nous	-
517	5304425282		Bushing,washer ,canopy Screw		Appelez-nous	-
F19	5304425240		Capacitor,12.5 Microfarad		Appelez-nous	-
F23	5304435306		Filter,grease ,aluminum ,washable				$ 180.35
F31	5304425242		Lamp Assy,halogen G4 Base ,20 W ,12 V ,w/holder,cover		Appelez-nous	-
F48	5304425268		Switch,control Board				$ 448.72
F49	5304425269		Control Board,printed Circuit ,module				$ 895.34
F6	5304425236		Blower Wheel,fan				$ 380.89
F7	5304425237		Motor,blower Fan				$ 712.47
F84	5304425272		Transformer,60 Hz ,120 V		Appelez-nous	-
