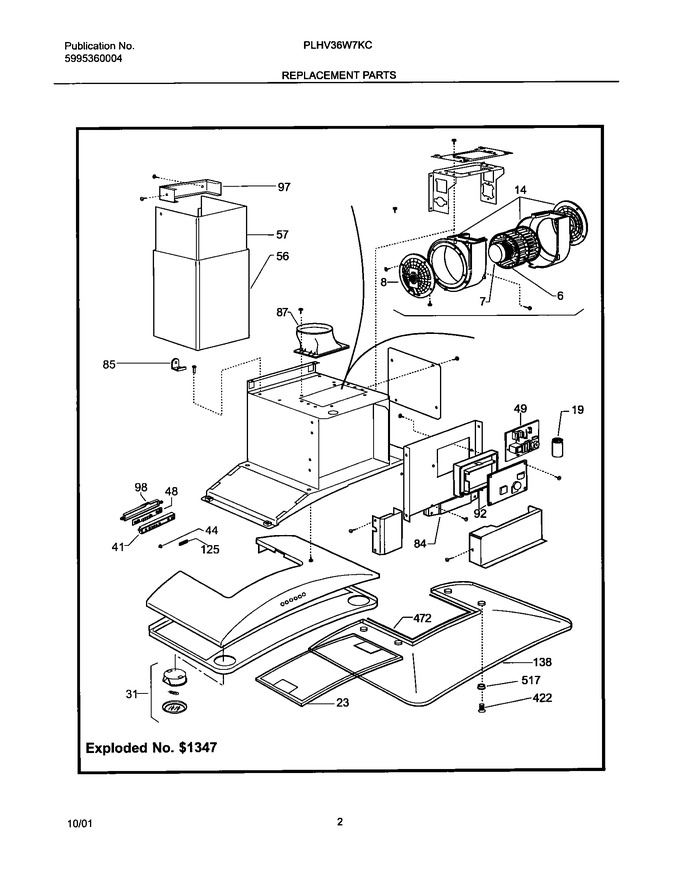

03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304425238		Support,motor		Appelez-nous	-
14	5304425239		Housing,blower Fan		Appelez-nous	-
41	5304425266		Panel,control		Appelez-nous	-
44	5304425267		Button,control				$ 153.41
56	5304425270		Chimney,exhaust Duct ,lower Extension ,fixed		Appelez-nous	-
57	5304425271		Chimney,exhaust Duct ,upper Extension ,sliding		Appelez-nous	-
85	5304425273		Bracket,hood Support ,rear ,u-hook				$ 191.42
87	5304425254		Duct,air Exhaust ,connector		Appelez-nous	-
92	5304425274		Control Box		Appelez-nous	-
97	5304425275		Bracket,chimney Support ,rear				$ 393.33
98	5304425276		Cover,switch				$ 79.38
125	5304425277		Cover,plaque ,glass		Appelez-nous	-
138	5304425278		Canopy,glass		Appelez-nous	-
422	5304425280		Screw,canopy Mtg ,m6 X 20 ,glass Clamping		Appelez-nous	-
472	5304425281		Gasket,canopy Seal ,rubber		Appelez-nous	-
517	5304425282		Washer,hood Mtg Screw		Appelez-nous	-
F19	5304425240		Capacitor		Appelez-nous	-
F23	5304425264		Filter,range Hood ,framed Grid				$ 332.21
F31	5304425265		Lamp,g-4 ,20 W ,12 V ,with Holder		Appelez-nous	-
F48	5304425268		Switch,control Circuit				$ 448.72
F49	5304425269		Control,printed Circuit ,pcb				$ 895.34
F6	5304425236		Blower Wheel,fan				$ 380.89
F7	5304425237		Motor,blower Fan				$ 712.47
F84	5304425272		Ballast,lamp ,transformer		Appelez-nous	-
NI	218395401		Nameplate		Appelez-nous	-
