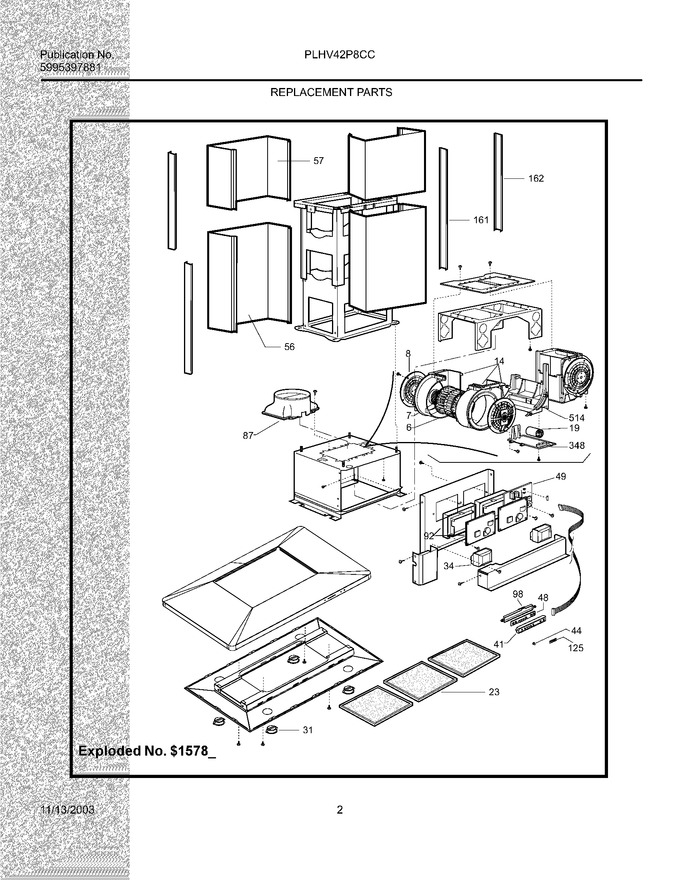

03 - Replacement Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304425238		Support,motor		Appelez-nous	-
14	5304435616		Housing,blower Fan		Appelez-nous	-
41	5304425266		Control Panel		Appelez-nous	-
44	5304425267		Pushbutton,control Key ,chrome				$ 153.41
56	5304435069		Chimney,duct Cover ,lower ,fixed		Appelez-nous	-
57	5304435070		Chimney,duct Cover ,upper ,sliding		Appelez-nous	-
87	5304425288		Connector,transition Duct		Appelez-nous	-
92	5304425274		Control Box		Appelez-nous	-
98	5304425276		Cover,switch				$ 79.38
125	5304425277		Cover,plaque ,glass		Appelez-nous	-
161	5304435071		Moulding,chimney Trim ,lower		Appelez-nous	-
162	5304435072		Moulding,chimney Trim ,upper		Appelez-nous	-
348	5304425289		Cover,capacitor		Appelez-nous	-
514	5304425291		Housing,capacitor Box		Appelez-nous	-
F19	5304425240		Capacitor,12.5 Microfarad		Appelez-nous	-
F23	5304435067		Filter,grease ,aluminum ,washable				$ 282.08
F31	5304425242		Lamp Assy,halogen G4 Base ,20 W ,12 V ,w/holder,cover		Appelez-nous	-
F34	5304435068		Transformer,lamp Ballast ,60 Hz ,120/12 V				$ 336.21
F48	5304425268		Switch,control Board				$ 448.72
F49	5304425269		Control Board,printed Circuit ,module				$ 895.34
F6	5304425236		Blower Wheel,fan				$ 380.89
F7	5304425237		Motor,blower Fan				$ 712.47
