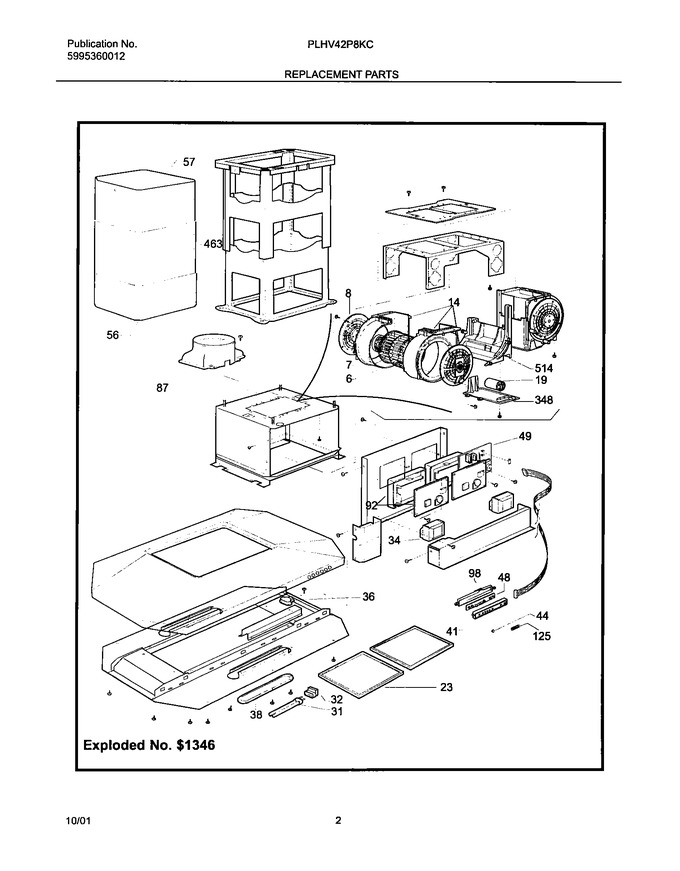

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304425238		Support,motor		Appelez-nous	-
14	5304425239		Housing,blower Fan		Appelez-nous	-
31	5304425150		Lamp,philips Pl-s ,9 Watt ,fluorescent		Appelez-nous	-
36	5304425284		Housing,lamp Support		Appelez-nous	-
38	5304425285		Cover,lamp Lens		Appelez-nous	-
40	5304425243		Housing,controls		Appelez-nous	-
41	5304425266		Panel,control		Appelez-nous	-
44	5304425267		Button,control				$ 153.41
56	5304425286		Chimney,exhaust Duct ,lower Extension ,fixed		Appelez-nous	-
57	5304425287		Chimney,exhaust Duct ,upper Extension ,sliding		Appelez-nous	-
87	5304425288		Duct,air Exhaust ,connector		Appelez-nous	-
92	5304425274		Control Box		Appelez-nous	-
98	5304425276		Cover,switch				$ 79.38
125	5304425277		Cover,plaque ,glass		Appelez-nous	-
348	5304425289		Cover,capacitor		Appelez-nous	-
463	5304425290		Chimney,exhaust Duct ,center Section		Appelez-nous	-
514	5304425291		Housing,capacitor Box		Appelez-nous	-
F19	5304425240		Capacitor		Appelez-nous	-
F23	5304425283		Filter,range Hood ,framed Grid		Appelez-nous	-
F32	5304425151		Lamp Holder		Appelez-nous	-
F34	5304425152		Ballast,lamp ,transformer		Appelez-nous	-
F48	5304425268		Switch,control Circuit				$ 448.72
F49	5304425269		Control,printed Circuit ,pcb				$ 895.34
F6	5304425236		Blower Wheel,fan				$ 380.89
F7	5304425237		Motor,blower Fan				$ 712.47
NI	218395401		Nameplate		Appelez-nous	-
