01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Freezer Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

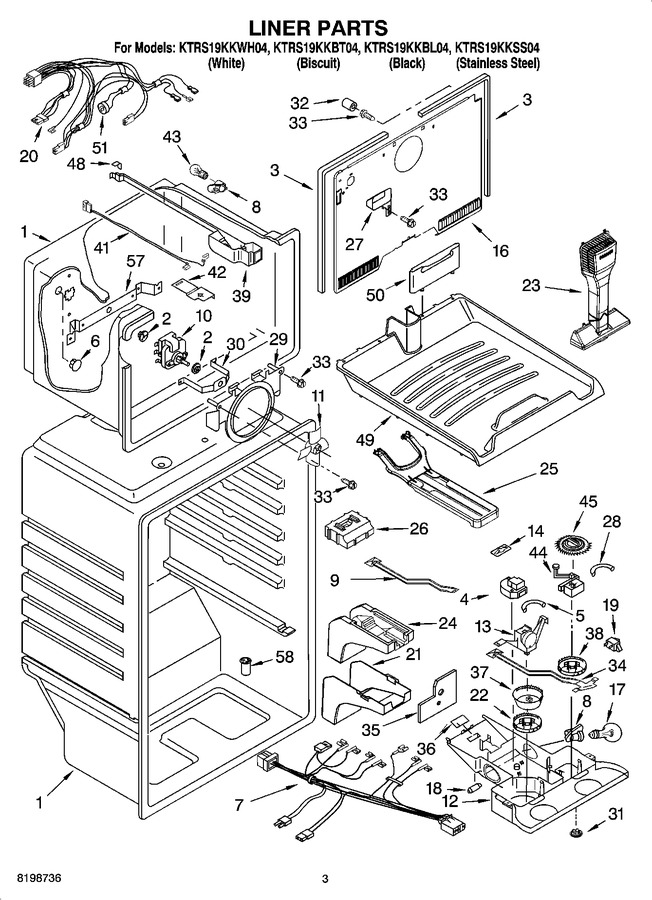

1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2264462		Grommet (2)   (Replaces: 2197380)			Immediately	$ 46.17
3	WP2254360		Gasket, Evaporator Cover (2)   (Replaces: 2254359)				$ 28.12
4	W10822278		Defrost Timer   (Replaces: 2188376)			Immediately	$ 34.44
5	2212485		Thermostat Tube Barrier, Fzr				$ 5.92
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
7	2187306		Wire Assembly, Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 115.67
9	2212413		Damper, Air		Appelez-nous	-
10	WPW10189703		Fan Motor   (Replaces: 2214986)			Immediately	$ 76.37
11	WP2163777		Fan Blade   (Replaces: 2163777)			Immediately	$ 107.61
12	2213195		Control Box		Appelez-nous	-
13	2204984		Thermostat Assembly (includes Items 5, 18, & 36)		Appelez-nous	-
14	2176341		Clip		Appelez-nous	-
16	2254257		Cover-evaporator		Appelez-nous	-
17	8009		Light Bulb (2)   (Replaces: 527949)			Immediately	$ 18.67
18	2200831		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch (2)   (Replaces: 1118894)			Immediately	$ 39.09
20	2187686		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	2205094		Knob, Thermostat		Appelez-nous	-
23	WP2254354		Air Tower   (Replaces: 2254354)				$ 108.24
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 131.03
25	2225473		Retainer, Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
27	2205003		Cover, Hole		Appelez-nous	-
28	WP2196003		Thermostat Tube Barrier, Ref   (Replaces: 549512)				$ 8.35
29	2218696		Bracket, Fan Motor		Appelez-nous	-
30	2214979		Bracket, Evap. Fan, Front				$ 56.05
31	940014		Hole Plug, Control Box				$ 18.33
32	WP487996		Cap   (Replaces: 487996)				$ 8.67
33	WP489478		Screw   (Replaces: 489478)				$ 8.18
34	2212413		Air Damper		Appelez-nous	-
35	2204639		Shield, Heat		Appelez-nous	-
36	WP2205079		Seal, Rearthermostat   (Replaces: 2205079)				$ 10.01
37	WP2184574		Gear Wheel, Thermostat   (Replaces: 2184574)				$ 72.03
38	2204951		Knob, Damper		Appelez-nous	-
39	2201152		Housing Base		Appelez-nous	-
41	2187601		Wiring Harness, Freezer Light		Appelez-nous	-
42	2193491		Electrical Shield, Freezer Light				$ 5.81
43	4396822		Light Bulb   (Replaces: 850166)			Immediately	$ 13.58
44	2204991		Control, Freezer		Appelez-nous	-
45	2204992		Gear Wheel, Freezer Control		Appelez-nous	-
48	2166284		Gasket, Rear				$ 6.06
49	2225477		Pullout, Freezer Floor		Appelez-nous	-
50	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55
51	WP4387503		Defrost Bi-metal   (Replaces: 2221677)			Immediately	$ 47.89
57	2214976		Bracket, Evap. Fan, Rear				$ 29.44
58	WP2210509		Valve-tube, Body   (Replaces: 2171931)				$ 99.15
