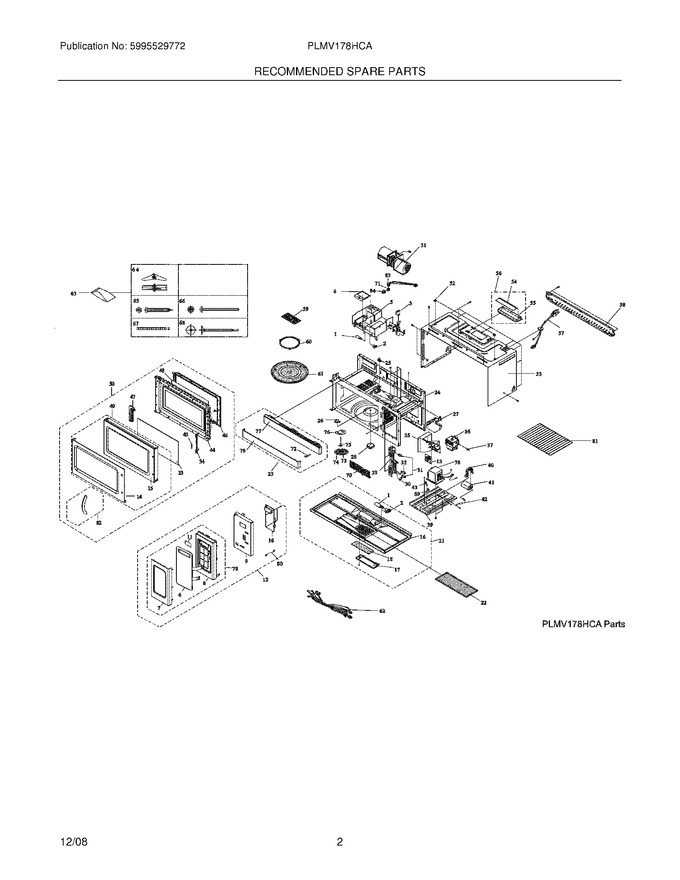

03 - Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304456066 | Lamp,incandescent |
|
- | |||||
| 4 | 5304470506 | Bracket,upper Duct |
|
- | |||||
| 5 | 5304470507 | Duct Assembly,upper |
|
- | |||||
| 7 | 5304470509 | Trim,inlay ,control Panel |
|
- | |||||
| 8 | 5304470510 | Frame,control Panel |
|
- | |||||
| 9 | 5304470511 | Housing,control Board |
|
- | |||||
| 11 | 5304470513 | Window,display |
|
- | |||||
| 14 | 5304470515 | Trim,door Inlay |
|
- | |||||
| 15 | 5304470516 | Panel,outer Door |
|
- | |||||
| 16 | 5304456083 | Cover,unit Base |
|
- | |||||
| 17 | 5304456085 | Frame,lens Holder |
|
- | |||||
| 18 | 5304456087 | Lens,cooktop Lamp ,glass |
|
- | |||||
| 23 | 5304470518 | Grille Assembly,front |
|
- | |||||
| 24 | 5304470519 | Cavity,oven ,assembly |
|
- | |||||
| 26 | 5304456095 | Coupler,turntable/motor |
|
- | |||||
| 27 | 5304456096 | Guide,air ,upper |
|
- | |||||
| 29 | 5304456168 | Latch Hook |
|
- | |||||
| 30 | 5304456099 | Lever,switch ,lower |
|
- | |||||
| 33 | 5304470505 | Screen,door |
|
- | |||||
| 34 | 5304456103 | Latch,door |
|
- | |||||
| 35 | 5304456104 | Guide,air ,lower |
|
- | |||||
| 39 | 5304470520 | Base,transformer |
|
- | |||||
| 40 | 5304456109 | Bracket,capacitor |
|
- | |||||
| 44 | 5304456116 | Middle Door,assembly |
|
- | |||||
| 45 | 5304470522 | Spring,latch |
|
- | |||||
| 46 | 5304456117 | Frame,choke Cover ,inner Door |
|
- | |||||
| 47 | 5304470523 | Bracket,screen Holder |
|
- | |||||
| 48 | 5304456118 | Seal,door ,film |
|
- | |||||
| 49 | 5304470524 | Door Assembly,outer ,with Trim |
|
- | |||||
| 50 | 5304470525 | Door Assembly,complete |
|
- | |||||
| 52 | 5304456122 | Nut,holder Assembly ,(2) |
|
- | |||||
| 53 | 5304470527 | Cabinet,outer Casing |
|
- | |||||
| 54 | 5304457620 | Cover,damper |
|
- | |||||
| 55 | 5304456126 | Damper,main |
|
- | |||||
| 56 | 5304457619 | Damper Assembly,hood |
|
- | |||||
| 58 | 5304456129 | Plate,mounting |
|
- | |||||
| 59 | 5304455657 | Filter,charcoal |
|
$ 73.53 | |||||
| 60 | 5304470528 | Guide,turntable ,with Rollers |
|
- | |||||
| 61 | 5304456131 | Tray,turntable |
|
- | |||||
| 63 | 5304456133 | Hardware Assembly,mounting |
|
- | |||||
| 64 | 5304456134 | Nut,toggle ,(3) |
|
- | |||||
| 65 | 5304456135 | Screw,machine ,inch |
|
- | |||||
| 66 | 5304456136 | Bolt,toggle ,(3) |
|
- | |||||
| 67 | 5304456137 | Grommet,nylon ,(2) |
|
- | |||||
| 68 | 5304456138 | Bolt,flat Head |
|
$ 10.08 | |||||
| 70 | 5304456140 | Cover,front |
|
- | |||||
| 72 | 5304470530 | Clip,grille ,ground |
|
- | |||||
| 73 | 5304456141 | Cover,stirrer |
|
- | |||||
| 74 | 5304456142 | Button,lock |
|
- | |||||
| 75 | 5304456143 | Holder,stirrer |
|
- | |||||
| 76 | 5304456144 | Fan Blade,stirrer |
|
- | |||||
| 77 | 5304470531 | Grille,front |
|
- | |||||
| 79 | 5304470532 | Trim,grille Inlay |
|
- | |||||
| 81 | 5304470535 | Rack,wire |
|
- | |||||
| 82 | 5304470536 | Handle,door |
|
- | |||||
| 84 | 5304457639 | Holder,sensor |
|
- | |||||
| F10 | 5304470512 | Control Board,printed Circuit |
|
- | |||||
| F12 | 5304470514 | Control Assembly,complete |
|
- | |||||
| F13 | 5304456082 | Filter,noise ,electronic |
|
- | |||||
| F2 | 5304456067 | Lampholder,socket |
|
- | |||||
| F21 | 5304470517 | Base Assembly,with Lamp |
|
- | |||||
| F22 | 5304456090 | Filter,air |
|
- | |||||
| F25 | 5304456094 | Thermostat,upper |
|
$ 55.65 | |||||
| F28 | 5304456097 | Motor,drive |
|
- | |||||
| F3 | 5304456068 | Capacitor,motor |
|
- | |||||
| F31 | 5304456100 | Switch,micro ,(2) |
|
- | |||||
| F32 | 5304456101 | Switch,micro |
|
- | |||||
| F36 | 5304456105 | Magnetron Assembly |
|
$ 266.23 | |||||
| F37 | 5304456106 | Thermostat |
|
$ 46.62 | |||||
| F38 | 5304456107 | Transformer,high Voltage |
|
- | |||||
| F41 | 5304456110 | Capacitor,oil |
|
$ 172.62 | |||||
| F42 | 5304470521 | Diode,high Voltage |
|
- | |||||
| F43 | 5304456112 | Thermostat,40-70 C ,lh Lwr |
|
$ 43.65 | |||||
| F51 | 5304470526 | Motor,vent Fan |
|
- | |||||
| F57 | 5304456128 | Power Cord,electric |
|
- | |||||
| F6 | 5304470508 | Switch,touch Control ,membrane |
|
- | |||||
| F62 | 5304470529 | Wiring Harness,main-a |
|
- | |||||
| F69 | 5304456139 | Thermostat,rh ,lower |
|
- | |||||
| F71 | 5304456185 | Sensor,gas |
|
$ 59.64 | |||||
| F78 | 5304470533 | Control Panel Assy,w/touch Pad |
|
- | |||||
| F80 | 5304470534 | Wiring Harness,control-h |
|
- | |||||
| F83 | 5304457600 | Wiring Harness,upper Duct |
|
- | |||||
| NI | 5304470793 | Template,installation ,wall |
|
- | |||||
| NI | 5304470794 | Template,installation ,top Cab |
|
- |
