SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf , Lit/optional

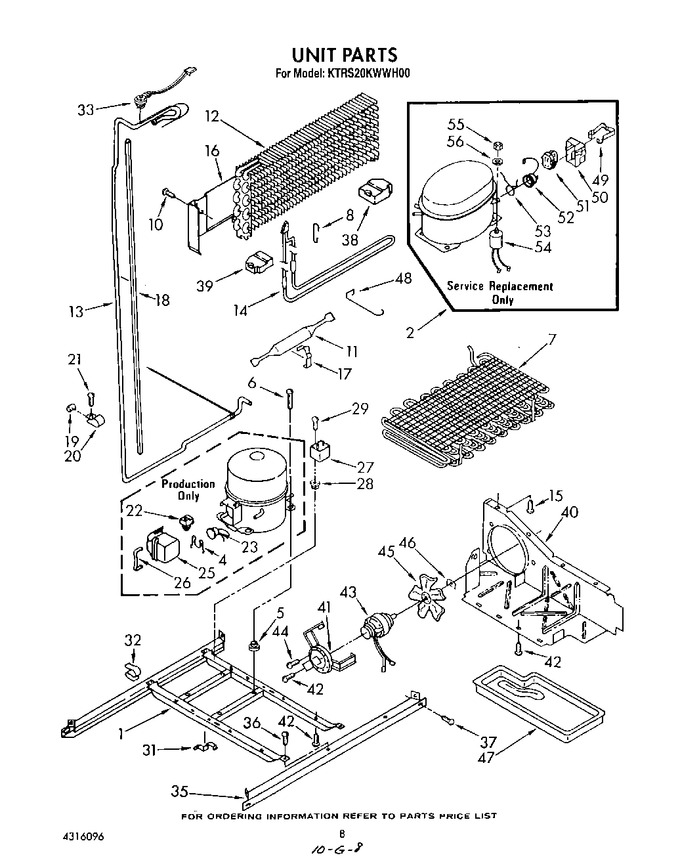

06 - Unit


07 - Refrigerator Door


08 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127942		Unit, Frame		Appelez-nous	-
2	482981		Compressor Kit Includes Items (49, 50, 51, 52, 53, 54, 55, 56) (also Order 876765 Tube Kit)		Appelez-nous	-
4	943320		Overload Spring		Appelez-nous	-
5	876811		Grommet, Compressor (4)   (Replaces: 1114359)				$ 7.79
6	876811		Screw (4)   (Replaces: 489116)				$ 7.79
7	1114155		Condenser Assembly		Appelez-nous	-
8	851358		Support, Heater		Appelez-nous	-
10	W11624204		Screw (2)   (Replaces: 486194)				$ 14.72
11	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 57.13
12	1118548		Evaporator Assembly		Appelez-nous	-
13	1118681		Heat, Exchanger		Appelez-nous	-
14	1118829		Heater, Defrost		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	1105545		Heat Shield		Appelez-nous	-
17	1127590		Clamp, Dryer		Appelez-nous	-
18	1108690		Sleeve		Appelez-nous	-
19	510769		Dampener (2)		Appelez-nous	-
20	510716		Tube Clamp (2)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	945507		Relay		Appelez-nous	-
23	1118851		Overload		Appelez-nous	-
25	1105055		Terminal Cover		Appelez-nous	-
26	943322		Strap, Cover		Appelez-nous	-
27	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
28	509812		Screw Grommet		Appelez-nous	-
29	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
31	548744		Clip, Unit Cover		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	WP4387500		Defrost, Bimetal   (Replaces: 1127805)				$ 125.64
35	2149717		Unit, Rail		Appelez-nous	-
36	WP489427		Screw (2)   (Replaces: 489339)				$ 7.84
37	489340		Screw (4)		Appelez-nous	-
38	1118550		Support (r.s.)		Appelez-nous	-
39	1118551		Support, Evaporator (l.s.)		Appelez-nous	-
40	1127938		Air, Baffle		Appelez-nous	-
41	548695		Fan, Mounting Bracket		Appelez-nous	-
42	488624		Screw, 8 X 3/8		Appelez-nous	-
43	833697		Motor, Fan   (Replaces: 1121292)			Immediately	$ 109.14
44	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
45	989524		Fan, Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
47	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
48	1105612		Guard, Fan				$ 42.61
49	938384		Strap		Appelez-nous	-
50	1105015		Cover, Terminal		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
52	483037		Overload		Appelez-nous	-
53	1114190		Overload Spring		Appelez-nous	-
54	482996		Capacitor		Appelez-nous	-
55	489142		Nut		Appelez-nous	-
56	876764		Valve, Access(3/16``)			Immediately	$ 95.92
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 137.25
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
56	489143		Washer		Appelez-nous	-
56	978026		Valve, Access (5/16``)			Immediately	$ 134.49
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
