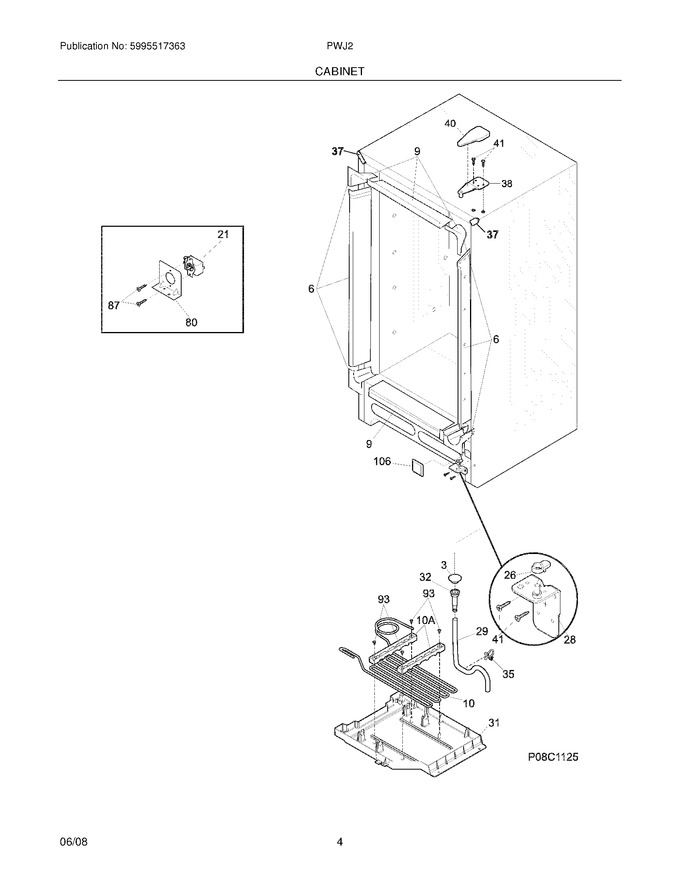

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
6	297200300		Breaker Kit W/corners,no Lock Slot				$ 39.69
9	297200200		Breaker Kit W/corners,28`` ,top And Bottom				$ 45.32
26	216503300		Ramp,door Closer				$ 9.80
28	297283900		Hinge-bottom,stepped Pin   (Replaces: 297240800)			Immediately	$ 60.25
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
31	297165800		Pan-drain				$ 99.06
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
35	216273000		Clip, Drain Hose				$ 24.91
37	5303918607		Trim-cabinet Corner,black ,(2)   (Replaces: 241611303)				$ 8.43
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 21.69
40	297164401		Cover-upper Hinge,black				$ 13.39
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
80	297222400		Bracket,cold Control		Appelez-nous	-
87	5304460603		Screw,32 ,thno.6-32x1/2		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 12.05
106	216926300		Plug,square ,black ,base Front		Appelez-nous	-
10A	297177400		Bracket,(2) ,drain Pan		Appelez-nous	-
F10	297193100		Heater-drain Pan		Appelez-nous	-
F21	297217500		Control-temperature,b12		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
