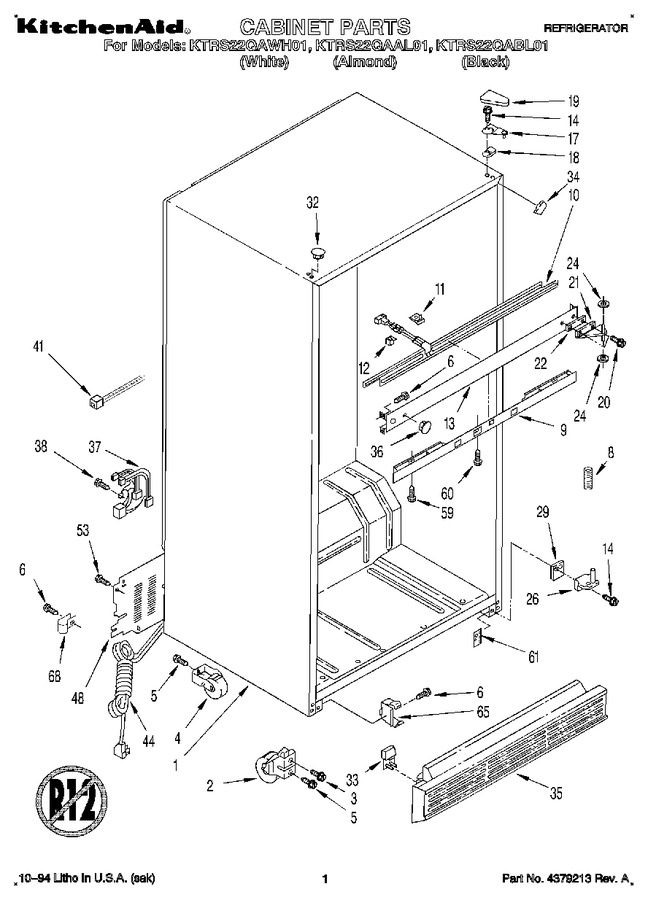

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489393		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	WP489478		Screw   (Replaces: 489242)				$ 8.18
8	983659		Spring		Appelez-nous	-
9	1126139		Control, Front Cover		Appelez-nous	-
10	2157307		Heater, Mullion		Appelez-nous	-
11	1129018		Clip, Rail (4)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	2172705		Center Rail		Appelez-nous	-
14	WP999367		Screw   (Replaces: 489367)				$ 8.56
17	WP2189412		Hinge, Top   (Replaces: 2157593)				$ 120.23
18	1123515		Shim, Hinge Top				$ 6.58
19	WP2213363		Hinge Cover (black)   (Replaces: 2160406)			Immediately	$ 19.12
19	WP2213360		Hinge Cover (white)   (Replaces: 2160403)				$ 20.19
19	2160404		Hinge Cover (almond)		Appelez-nous	-
20	WP999367		Screw   (Replaces: 489105)				$ 8.56
21	2151453		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
24	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
26	2160753		Hinge Butt, Bottom		Appelez-nous	-
29	1123379		Shim, Bottom		Appelez-nous	-
32	2151653		Hole Plug (almond)		Appelez-nous	-
32	WP2151652		Hole Plug (white)   (Replaces: 2151652)				$ 22.87
32	WP2183998		Hole Plug (black)   (Replaces: 2160802)				$ 19.01
33	1125670		Corner Filler, Grille (almond)		Appelez-nous	-
33	1125665		Corner Filler, Grille (white)		Appelez-nous	-
33	1118078		Corner Filler, Grille (black)		Appelez-nous	-
34	1118059		Filler, Wrap Corner (almond)		Appelez-nous	-
34	2162679		Filler, Wrap Corner (black)		Appelez-nous	-
34	1118058		Filler, Wrap Corner (white)		Appelez-nous	-
35	2160757		Grille (almond)		Appelez-nous	-
35	2168621		Grille (white)		Appelez-nous	-
35	2160686		Grille (black)		Appelez-nous	-
36	1129062		Hole Plug (white)		Appelez-nous	-
37	2153994		Wiring Assy. Intermediate		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
41	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 8.30
44	937360		Cord, Service		Appelez-nous	-
48	2160490		Cover, Unit		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
59	WP488163		Screw, 8 X 13/16   (Replaces: 488725)				$ 7.92
60	WP489174		Screw   (Replaces: 489174)				$ 7.30
61	2157315		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille Retainer (2)   (Replaces: 2155013)			Immediately	$ 8.11
68	549193		Clamp				$ 14.06
