SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

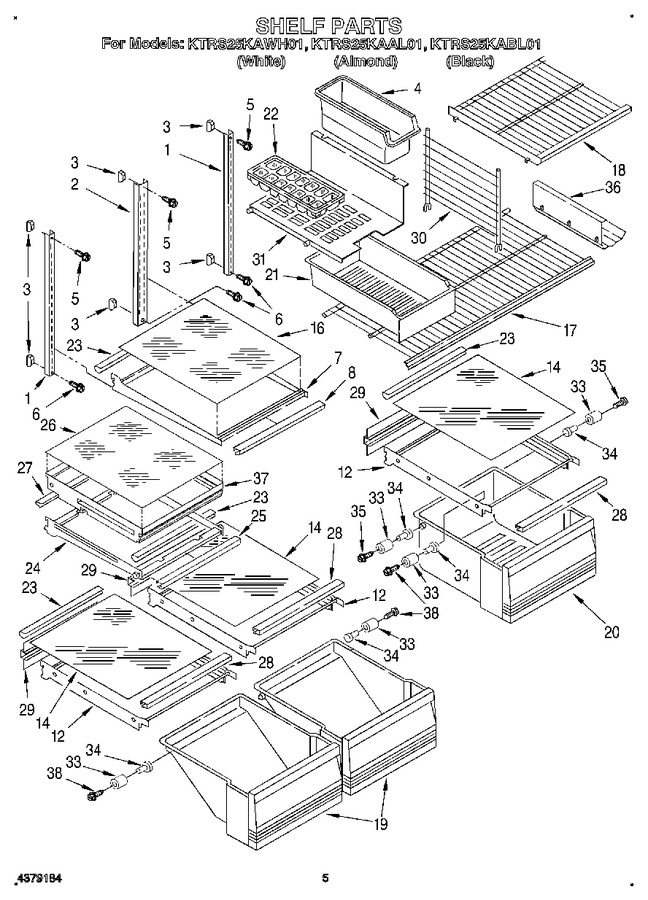

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 28.22
4	WP982704		Container   (Replaces: 1116917)				$ 29.30
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.13
7	1125748		Shelf, Cantilever (2)		Appelez-nous	-
8	1125784		Gasket (front)		Appelez-nous	-
12	2161761		Pan Shelf, Slide Assembly (3)		Appelez-nous	-
14	1125779		Glass, Shelf		Appelez-nous	-
16	1125749		Glass, Shelf		Appelez-nous	-
17	1125745		Shelf, Freezer		Appelez-nous	-
18	1125746		Shelf, Freezer		Appelez-nous	-
19	2161897		Crisper Pan (2) Roller Assembly		Appelez-nous	-
20	2161894		Meat Pan Roller Assembly		Appelez-nous	-
21	W11625904		Ice Cube Pan   (Replaces: 1125561)			Immediately	$ 61.05
22	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 43.06
23	1125754		Retainer, Shelf		Appelez-nous	-
24	2161805		Frame & Roller Assembly		Appelez-nous	-
25	2161685		Gasket (front)		Appelez-nous	-
26	2161682		Glass, Shelf		Appelez-nous	-
27	2161808		Retainer, Shelf		Appelez-nous	-
28	1125813		Gasket (front)		Appelez-nous	-
29	1125816		Gasket, Rear		Appelez-nous	-
30	1125542		Divider		Appelez-nous	-
31	1125543		Shelf, Ice Tray Roller Assembly		Appelez-nous	-
33	2161749		Roller		Appelez-nous	-
34	1112308		Eyelet, Roller		Appelez-nous	-
35	WP489261		Screw   (Replaces: 489261)				$ 7.50
36	1125913		Wine & Egg Rack		Appelez-nous	-
37	2161705		Frame & Roller Assembly Moveable		Appelez-nous	-
38	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
38	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
38	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
38	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
38	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
38	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
38	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
38	833938		Kit, Terminal Connector				$ 7.62
38	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
38	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
38	WP489261		Screw, 10-16 X .625   (Replaces: 489212)				$ 7.50
38	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
38	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
38	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
38	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
38	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
38	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
38	1125911		Door Reversal Instructions		Appelez-nous	-
38	350942		Primer White (13 Oz. Spray Can)				$ 84.73
38	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
38	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
38	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	LIT2161695		Use & Care Guide		Appelez-nous	-
	1129316		Kims8   (Replaces: 1129318)			Immediately	$ 134.20
	LIT2169124		Service & Wiring Sheet		Appelez-nous	-
	LIT2168630		Energy Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
