Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 555555 Assy-evap Fre   (Replaces: DA97-00192F) Special Order $ 168.82

2 DA97-02799B Assy Cover-evap,re Fre Special Order $ 133.74

3 DA47-00095E Thermo Fuse-assy In-Stock Immediately $ 44.47

4 555555 Sensor Assy   (Replaces: DA32-00006C) Special Order $ 168.82

5 555555 Assy-plate Drain,fre   (Replaces: DA97-00195H) Special Order $ 168.82

6 DA61-00081B Case-motor Appelez-nous -
7 DA63-00771A Grommet-fan Motor Special Order $ 3.59

8 DA31-00002V Motor-fan Special Order $ 118.50

9 DA63-02567A Cover-evap Rear Special Order $ 60.23

10 DA31-00019A Fan-propeller Special Order $ 13.47

11 DA97-02798A Assy-cover Evap,front Special Order $ 115.89


    View Diagram in Separate Window     Print Icon   Print Part List

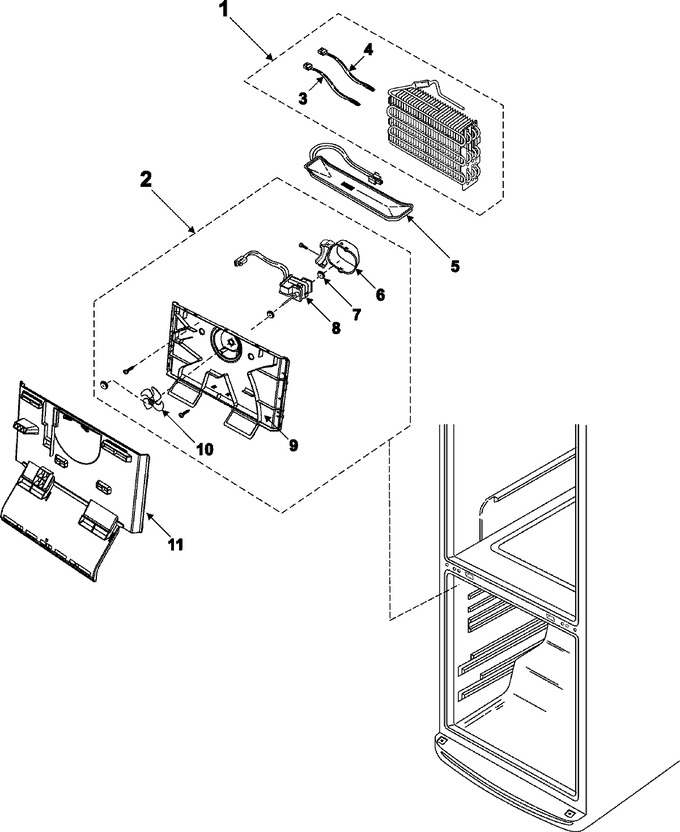

Diagram for RB195BSBB
